KMT-3769389

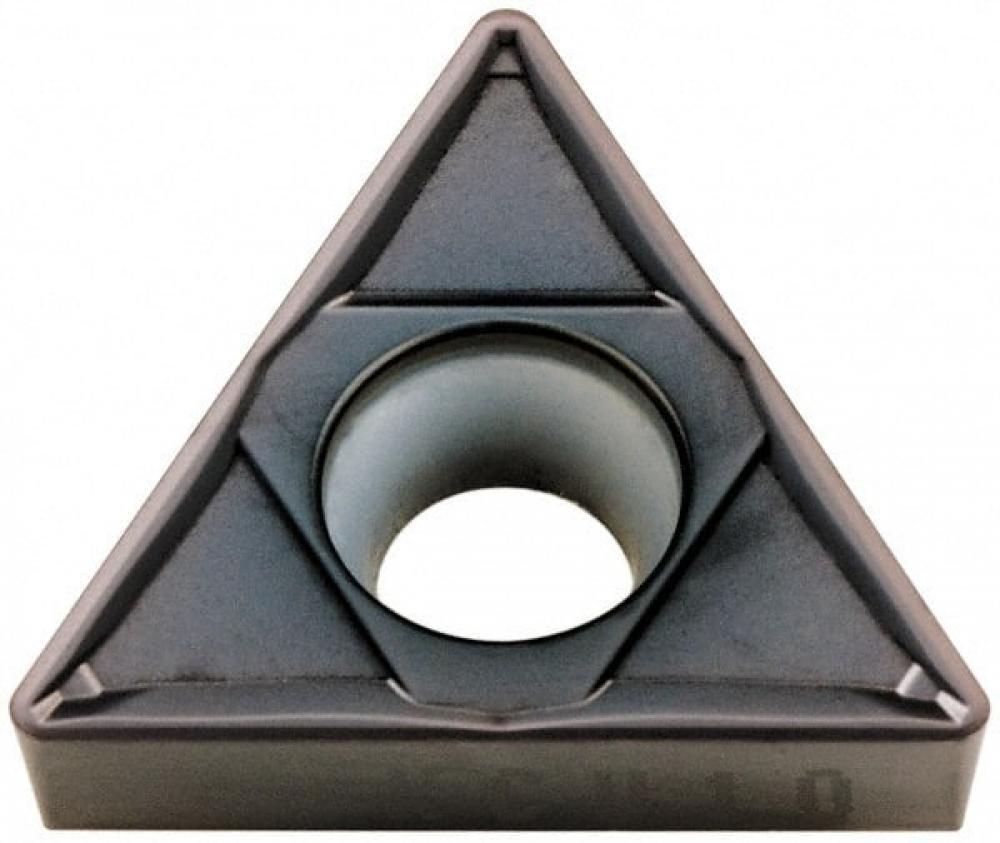

KMT-3769389 by Kennametal

$

25

92

/ 1

Part Number: 3769389
UPC:
Availability:

Nothing

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

ANSI/ISO Turning Insert TC..

Specifications

Details

Category:

Turning

Subcategory:

External Turning

Subtype:

Turning Indexable Inserts

Corner Radius (Decimal Inch):

0.03125

Corner Radius (Inch):

Jan-32

Corner Radius (mm):

0.8

Grade:

KCS10

Hole Diameter (Decimal Inch):

0.2165

Hole Diameter (mm):

5.5

Inscribed Circle (Decimal Inch):

0.5

Inscribed Circle (Inch):

2-Jan

Inscribed Circle (mm):

12.7

Insert Hand:

N - Neutral

Insert Shape:

T-Triangle 60

Insert Thickness (Decimal Inch):

0.1875

Insert Thickness (Inch):

16-Mar

Insert Thickness (mm):

4.76

ISO Code:

TCMT220408FP

Primary Workpiece Material:

High-Temp Alloys

Chipbreaker Mfgr's Designation:

FP

Cutting Tool Material:

Carbide

Engineering Insert Geometry:

MT_FP

Hand of Tool:

N - Neutral

Insert Mounting:

3-Part Cycl w/40-60 TaperScrew

Insert Num of Cutting Edges:

3

Insert Shape - Marcom Calc:

Triangle 60

Insert Shape-2:

Triangle 60

ISO Catalog Number:

TCMT220408FP

MAR_PLATFORM_KMT:

Screw-On

Secondary Workpiece Material:

Stainless Steel

Workpiece Material Facets - Secondary:

Stainless Steel

[ALPHANM] Clearance Ang Minor:

7.000

[ALPHAN] Clearance Angle Major:

7.000

[CUBMS]Unit of Tool:

B - Both Metric & Inch

[CUBWS]Units of Tool (Extract):

B - Both Metric & Inch

[D1] Insert Hole Size Inch:

0.2165

[D1] Insert Hole Size Metric:

5.5000

[D] Insert IC Size Fraction:

1/2

[D] Insert IC Size Inch:

0.5000

[D] Insert IC Size Metric:

12.7000

[L10] Ins Cut Edge Length In:

0.8661

[L10] Ins Cut Edge Length mm:

22.0000

[M] Insert Gage Dimens. Metric:

18.2560

[M] Insert Gage Dimension Inch:

0.7188

[REPSILON] Corner Radius Frac:

1/32

[REPSILON] Corner Radius Inch:

0.031250

[REPSILON] Corner Radius MM:

0.8000

[S] Insert Thickness Fraction:

3/16

[S] Insert Thickness Inch:

0.1875

[S] Insert Thickness Metric:

4.7600

Manufactured By:

Kennametal
