KMT-2036393 by Kennametal
Call For Price
- Part Number: 2036393
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

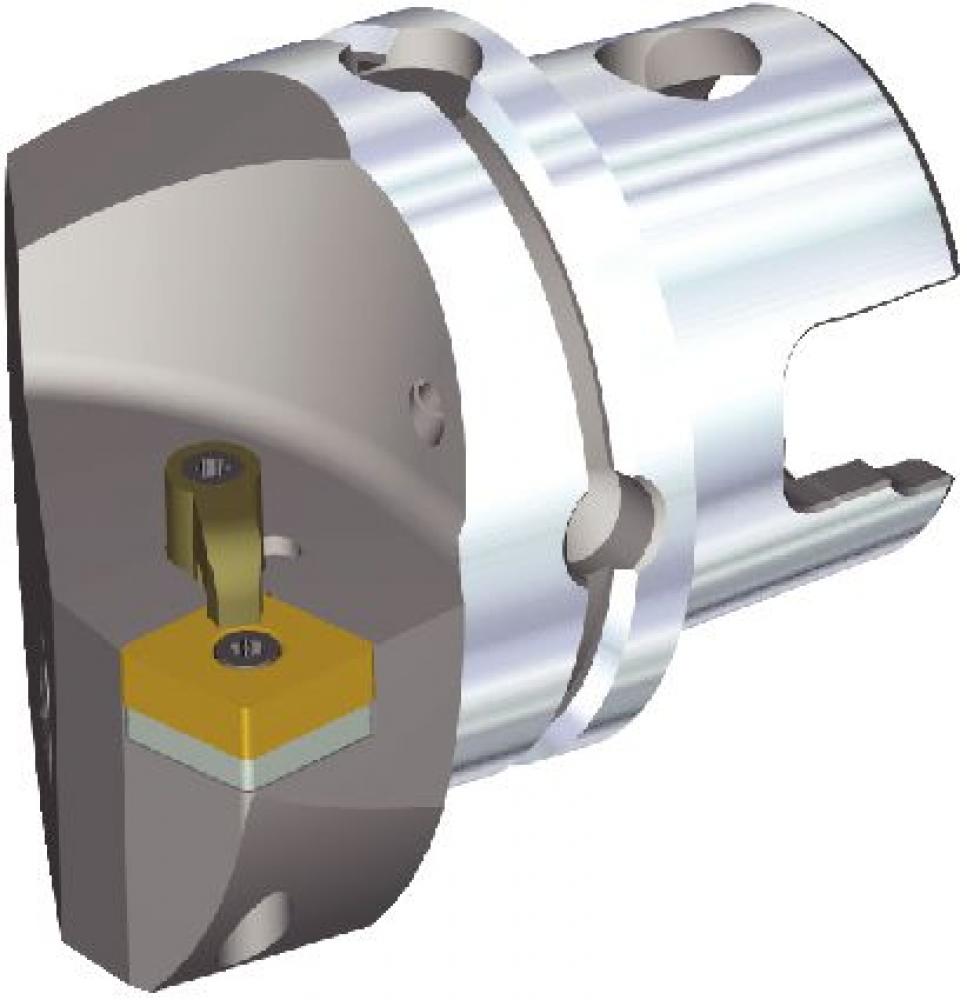

KM80 KENLOC 75° RH CN..19
Specifications
Details
Category:
Power Tools
Subcategory:
Finishing Tools
Subtype:
CNC Lathe Machine and Accessories
Insert Shape:
C-Diamond/Rhombic 80
Adapter Style Machine Side:
KM
Adapter Type Machine Side:
Taper Shank
Body Material Group:
Steel
Catalog Gage Insert 1:
CN..190612/CN..643
Clamping Type:
M - Top and Hole Clamping
Coolant Entry Style:
Off-center Axial Coolant
Coolant Exit:
Off-center Axial Coolant
Coolant Supply:
Yes
Hand of Tool:
R - Right
Insert Shape - Marcom Calc:
Diamond/Rhombic 80
ISO Catalog Number:
KM80ATCMCKNR19
MAR_PLATFORM_KMT:
KM80
Number of Insert Seats:
1
[A]Coolant Hole Dia Inch:
0.2362
[A]Coolant Hole Diameter Metric:
6.0000
[CS1]Coolant Supply Exit Size:
M5X0.8
[CSMS]System Size Machine Side:
KM80ATC
[CUBMS]Unit of Tool:
MM - Metric
[CUBWS]Units of Tool (Extract):
B - Both Metric & Inch
[DMIN]Min BoreDia_Ax GrvDia In:
4.1730
[DMIN]Min BoreDia_Ax GrvDia mm:
106.0000
[D]Adapter/Shank/Bore Dia Frac:
3.1496
[D]Adapter/Shank/Bore Dia Inch:
3.1496
[D]Adapter/Shank/Bore Dia mm:
80.0000
[F] F Dimension Inch:
2.0866
[F] F Dimension Metric:
53.0000
[GAMMAF] Radial Rake Angle:
-5.000
[GAMMAP] Axial Rake Angle:
-5.000
[H1] Cutting Height Inch:
0.00000
[H1] Cutting Height Metric:
0.0000
[KRA] Lead Angle ANSI:
15.000
[KRI] Lead Angle ISO:
75.000
[L10] Cutting Edge Length Inch:
0.7616
[L10] Cutting Edge Length mm:
19.3440
[L1A] L1 A Dimension Inch:
0.1831
[L1A] L1 A Dimension Metric:
4.6500
[L1S] Secondary Tool Length In:
2.9390
[L1S] Secondary Tool Length mm:
74.6500
[L1] Tool Length Inch:
2.7560
[L1] Tool Length Metric:
70.0000
[L4]Maximum Boring Depth Inch:
2.7560
[L4]Maximum Boring Depth mm:
70.0000
[LPR]Protruding Length Inch:
2.9390
[LPR]Protruding Length Metric:
74.6500
[LS] Shank Length Inch:
1.7697
[LS] Shank Length Metric:
44.9500
[L]Tool Overall Length Inch:
4.7090
[L]Tool Overall Length mm:
119.6000
Manufactured By:
Kennametal
