KMT-2033465

KMT-2033465 by Kennametal

Call For Price

Part Number: 2033465
UPC:
Availability:

Nothing

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

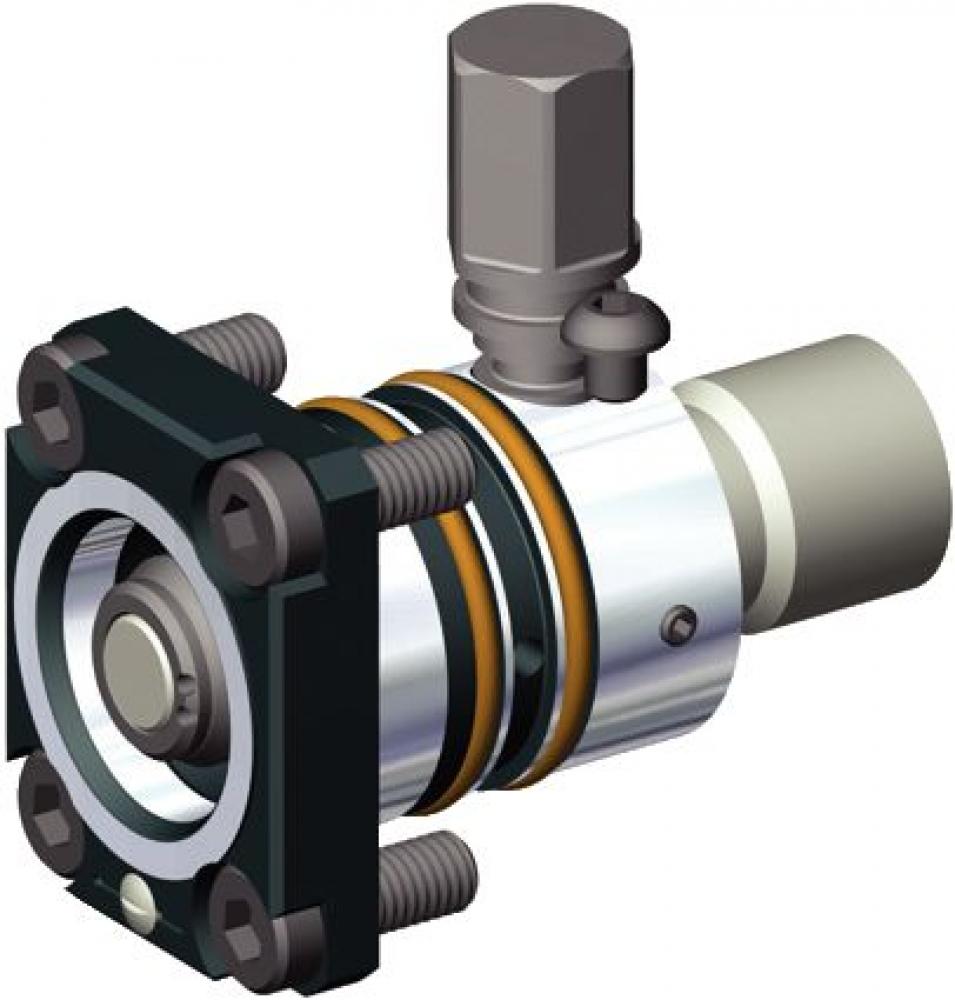

KM63 FLANGE MOUNT RAPID PLUS TOP ACCESS

Specifications

Details

Category:

Power Tools

Subcategory:

Finishing Tools

Subtype:

CNC Lathe Machine and Accessories

Actuation Screw OD Drive Size:

22 mm

Adapter Style Machine Side:

CL2NT-BC

Adapter Style Machine Side-Marcom Calc:

CL2NT-BC

Adapter Type Machine Side:

KMTL Flange Adapter

Adapter Type Workpiece Side:

KMT - KM Adapter

Coolant Entry Style:

Radial Coolant Entry

Coolant Exit:

Off-center Axial Coolant

Coolant Supply:

Yes

Front End Tool Type:

KM Modular Adapter

Hand of Tool:

N - Neutral

ISO Catalog Number:

KM63RPNTF

MAR_PLATFORM_KMT:

KM63

[B1] Front Clearance In:

1.4173

[B1] Front Clearance mm:

36.0000

[B2]Overall Width Inch:

2.8346

[B2]Overall Width Metric:

72.0000

[CSWS]System SizeWorkpieceSide:

KM63

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

MM - Metric

[D1]Adapt/Shank/BoreDiaWKPS In:

2.4803

[D1]Adapt/Shank/BoreDiaWKPS mm:

63.0000

[D]Adapter/Shank/Bore Dia Frac:

2.4803

[D]Adapter/Shank/Bore Dia Inch:

2.4803

[D]Adapter/Shank/Bore Dia mm:

63.0000

[H2] Overall Height Inch:

3.5433

[H2] Overall Height Metric:

90.0000

[H3] Head Bottom Offset Inch:

1.7717

[H3] Head Bottom Offset Metric:

45.0000

[L1]Gage Length 1 Inch:

0.6299

[L1]Gage Length 1 Metric:

16.0000

[LF]Functional Length Inch:

0.6299

[LF]Functional Length Metric:

16.0000

[LPR]Protruding Length Inch:

0.6299

[LPR]Protruding Length Metric:

16.0000

[LS] Shank Length Inch:

4.7244

[LS] Shank Length Metric:

120.0000

[LTA]Tool Assembly Length Inch:

0.6299

[LTA]Tool Assembly Length mm:

16.0000

[L] Overall Length Inch:

5.3543

[L] Overall Length Metric:

136.0000

Manufactured By:

Kennametal
