KMT-2032938

KMT-2032938 by Kennametal

Call For Price

Part Number: 2032938
UPC:
Availability:

Nothing

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

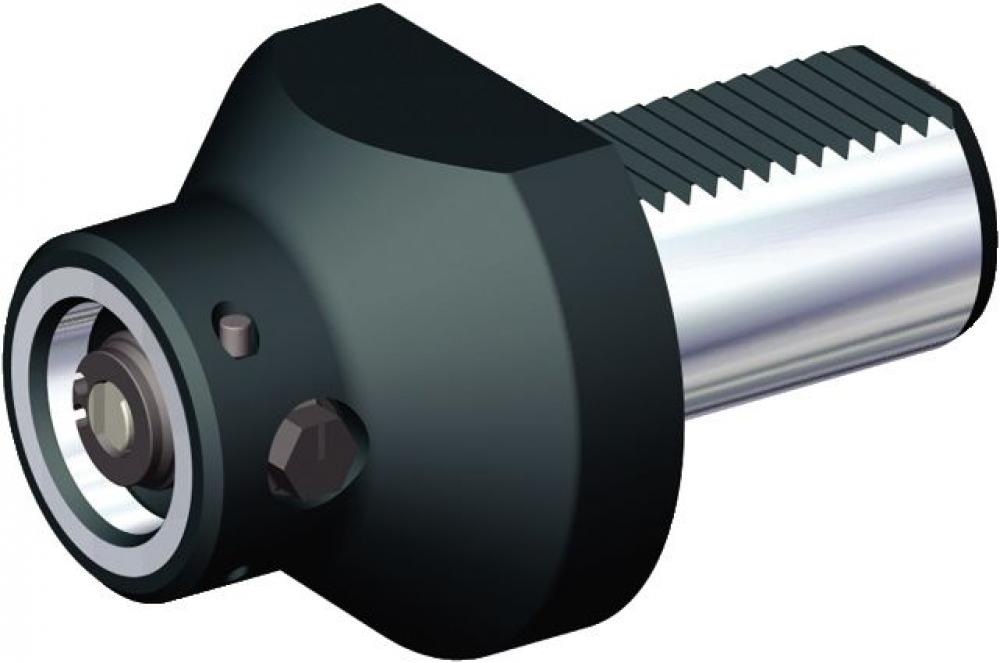

KM50 RAPID AXIAL LH VDI40 X 70MM

Specifications

Details

Category:

Power Tools

Subcategory:

Finishing Tools

Subtype:

CNC Lathe Machine and Accessories

Grade:

W

Actuation Screw OD Drive Size:

12 mm

Adapter Style Machine Side:

VDI Shank with Teeth

Adapter Style Machine Side-Marcom Calc:

VDI Shank with Teeth

Adapter Type Machine Side:

VDI Shank

Adapter Type Workpiece Side:

KMT - KM Adapter

Coolant Entry Style:

Flange Coolant Entry

Coolant Exit:

Off-center Axial Coolant

Coolant Supply:

Yes

Front End Tool Type:

KM Modular Adapter

Hand of Tool:

L - Left

ISO Catalog Number:

KM50RALVDI4070

MAR_PLATFORM_KMT:

KM50

[A]Coolant Hole Dia Inch:

0.5120

[A]Coolant Hole Diameter Metric:

13.0000

[CSMS]System Size Machine Side:

VDI40

[CSWS]System SizeWorkpieceSide:

KM50

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

MM - Metric

[D1]Adapt/Shank/BoreDiaWKPS In:

1.9685

[D1]Adapt/Shank/BoreDiaWKPS mm:

50.0000

[D21]Body Dia 2 Workpce Sde In:

3.2677

[D21]Body Dia 2 Workpce Sde mm:

83.0000

[D2]Body Dia 1 Workpce Side In:

2.3620

[D2]Body Dia 1 Workpce Side mm:

60.0000

[D]Adapter/Shank/Bore Dia Frac:

1.5748

[D]Adapter/Shank/Bore Dia Inch:

1.5740

[D]Adapter/Shank/Bore Dia mm:

40.0000

[H2] Overall Height Inch:

2.9130

[H2] Overall Height Metric:

74.0000

[H3] Head Bottom Offset Inch:

1.6339

[H3] Head Bottom Offset Metric:

41.5000

[L1]Gage Length 1 Inch:

2.7560

[L1]Gage Length 1 Metric:

70.0000

[L21]Usable Length 2 Inch:

1.2600

[L21]Usable Length 2 Metric:

32.0000

[L2]Usable Length Inch:

0.0079

[L2]Usable Length Metric:

0.2000

[LF]Functional Length Inch:

2.7560

[LF]Functional Length Metric:

70.0000

[LPR]Protruding Length Inch:

2.7560

[LPR]Protruding Length Metric:

70.0000

[LS] Shank Length Inch:

2.4800

[LS] Shank Length Metric:

63.0000

[LTA]Tool Assembly Length Inch:

2.7560

[LTA]Tool Assembly Length mm:

70.0000

[L] Overall Length Inch:

5.2360

[L] Overall Length Metric:

133.0000

Manufactured By:

Kennametal
