KMT-2032936

KMT-2032936 by Kennametal

Call For Price

Part Number: 2032936
UPC:
Availability:

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

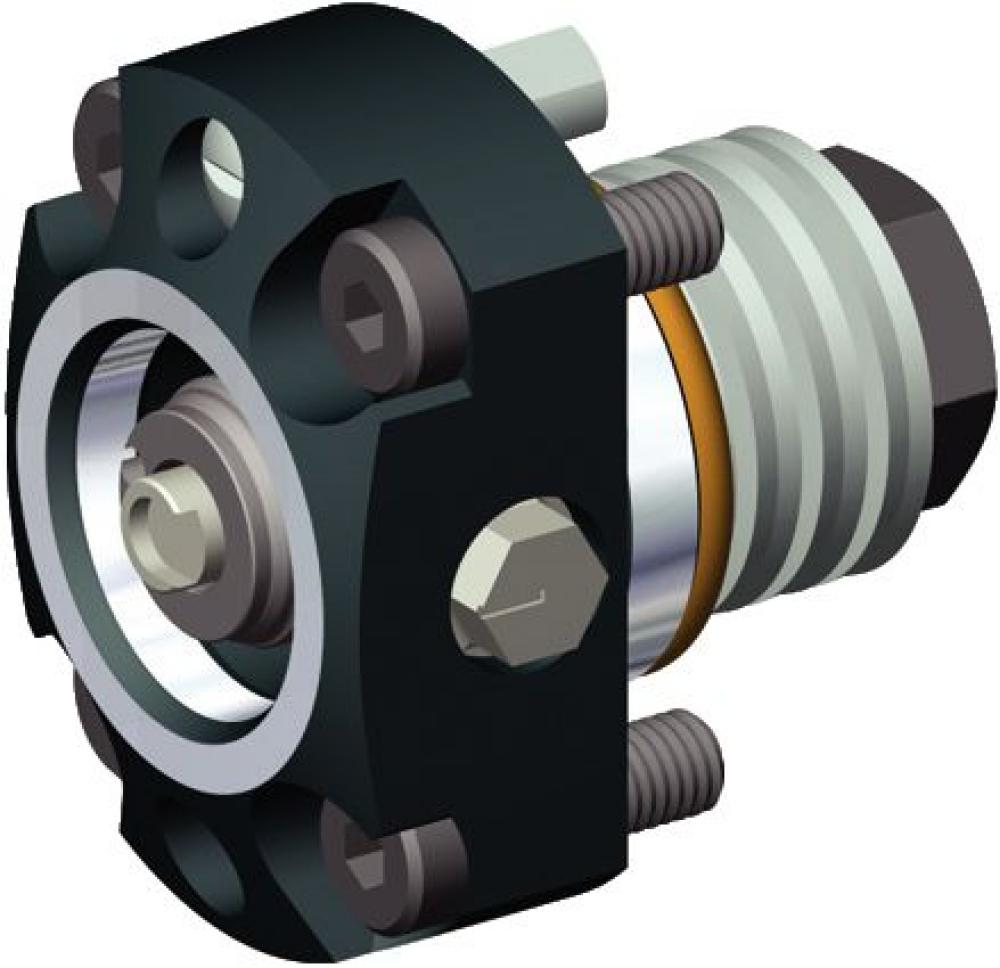

KM50 FLANGE MOUNT RAPID SIDE ACCESS

Specifications

Details

Category:

Power Tools

Subcategory:

Finishing Tools

Subtype:

CNC Lathe Machine and Accessories

Actuation Screw OD Drive Size:

12 mm

Adapter Style Machine Side:

NCM-EF & CL2N-EF

Adapter Style Machine Side-Marcom Calc:

NCM-EF & CL2N-EF

Adapter Type Machine Side:

KMTL Flange Adapter

Adapter Type Workpiece Side:

KMT - KM Adapter

Coolant Entry Style:

Off-center Axial Coolant

Coolant Exit:

Off-center Axial Coolant

Coolant Supply:

Yes

Front End Tool Type:

KM Modular Adapter

Hand of Tool:

N - Neutral

ISO Catalog Number:

KM50RNSEF

MAR_PLATFORM_KMT:

KM50

[B1] Front Clearance In:

1.1417

[B1] Front Clearance mm:

29.0000

[B2]Overall Width Inch:

2.2834

[B2]Overall Width Metric:

58.0000

[CSWS]System SizeWorkpieceSide:

KM50

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

MM - Metric

[D1]Adapt/Shank/BoreDiaWKPS In:

1.9685

[D1]Adapt/Shank/BoreDiaWKPS mm:

50.0000

[D2]Body Dia 1 Workpce Side In:

3.5433

[D2]Body Dia 1 Workpce Side mm:

90.0000

[D]Adapter/Shank/Bore Dia Frac:

1.9685

[D]Adapter/Shank/Bore Dia Inch:

1.9685

[D]Adapter/Shank/Bore Dia mm:

50.0000

[L1]Gage Length 1 Inch:

1.2598

[L1]Gage Length 1 Metric:

32.0000

[LF]Functional Length Inch:

1.2598

[LF]Functional Length Metric:

32.0000

[LPR]Protruding Length Inch:

1.2598

[LPR]Protruding Length Metric:

32.0000

[LS] Shank Length Inch:

1.7677

[LS] Shank Length Metric:

44.9000

[LTA]Tool Assembly Length Inch:

1.2598

[LTA]Tool Assembly Length mm:

32.0000

[L] Overall Length Inch:

3.0276

[L] Overall Length Metric:

76.9000

Manufactured By:

Kennametal
