KMT-1952780 by Kennametal
$
33
88
/ 1
- Part Number: 1952780
- UPC:
- Availability: undefined
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

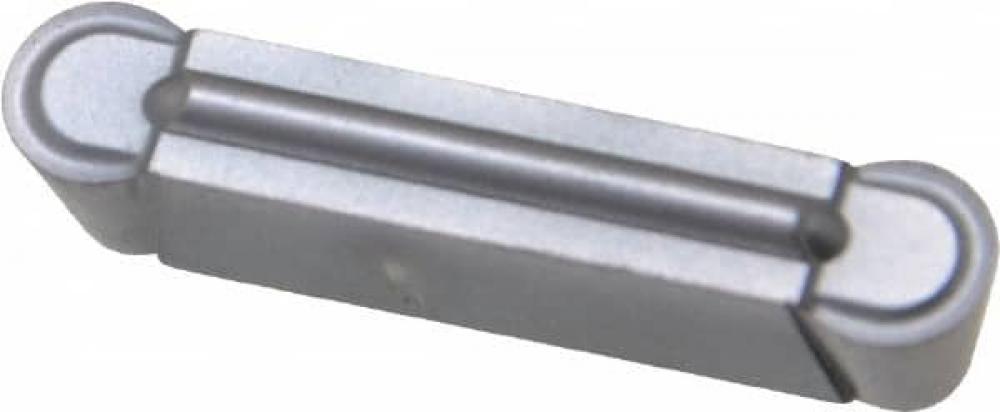

A4 Grooving Insert
Specifications
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Groove and Turn Indexable Inserts
Cutting Width (Decimal Inch):
0.197
Cutting Width (mm):
5
Grade:
KC5010
Maximum Depth of Cut:
0.16
Chipbreaker Mfgr's Designation:
GMP
Cutting Tool Material:
Carbide
Engineering Insert Geometry:
A4R_P_GMP
Insert Mounting:
6-ConvexPrismaticCrossSect
Insert Number of Cutting Edges:
2
ISO Catalog Number:
A4R0500M05P00GMP
MAR_PLATFORM_KMT:
A4
Profile Style:
10 -Grv Full Radius
Secondary Workpiece Material:
Non-Ferrous Materials,High-Temp Alloys,Hardened Materials,Steel,Stainless Steel,Cast Iron
Workpiece Material Facets - Secondary:
Non-Ferrous Materials,High-Temp Alloys,Hardened Materials,Steel,Stainless Steel,Cast Iron
[APMAX]Prof. ap max. Inch:
0.1600
[APMAX]Prof. ap max. Metric:
4.0700
[CL]Relief Clearance Angle lh:
7.000
[CM]Clearance Ang MainCutEdge:
12.000
[CR]Relief Clearance Angle rh:
7.000
[CUBMS]Unit of Tool:
B - Both Metric & Inch
[CUBWS]Units of Tool (Extract):
B - Both Metric & Inch
[GD]Gage Diameter Inch:
0.1970
[LI] Insert Length Inch:
0.9800
[LI] Insert Length Metric:
24.9000
[RC]Corner Radius Center Inch:
0.0984
[RC]Corner Radius Center mm:
2.5000
[SSC]Insert Size:
5
[S] Insert Thickness Inch:
0.2240
[S] Insert Thickness Metric:
5.6800
[T]Cutting Depth Inch:
0.1600
[T]Cutting Depth Metric:
4.0700
[W1]Insert Width Inch:
0.1600
[W1]Insert Width Metric:
4.0800
[W] Cutting Width Inch:
0.1970
[W] Cutting Width Metric:
5.0000
Manufactured By:
Kennametal
