KMT-1952778 by Kennametal

Call For Price

Part Number: 1952778
UPC:
Availability:

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

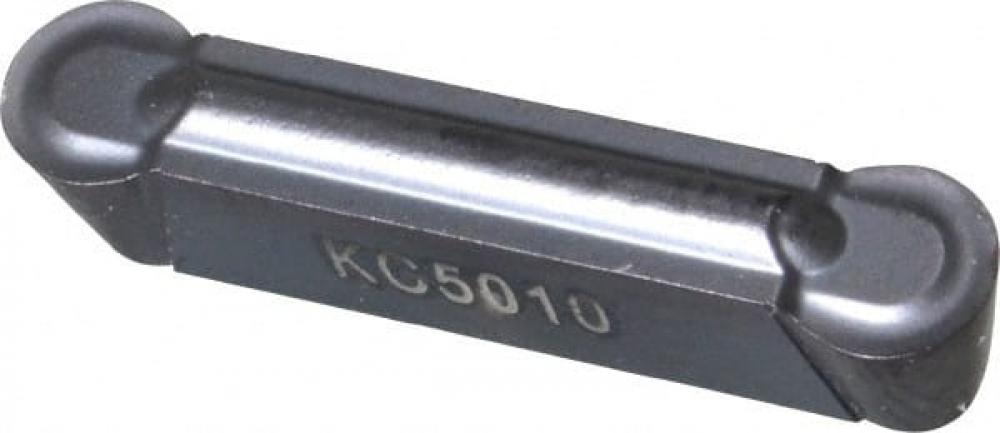

A4 Grooving Insert

Specifications

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Inserts

Cutting Width (Decimal Inch):

0.157

Cutting Width (mm):

Grade:

KC5010

Chipbreaker Mfgr's Designation:

GMP

Cutting Tool Material:

Carbide

Engineering Insert Geometry:

A4R_P_GMP

Insert Mounting:

6-ConvexPrismaticCrossSect

Insert Number of Cutting Edges:

ISO Catalog Number:

A4R0400M04P00GMP

MAR_PLATFORM_KMT:

Profile Style:

10 -Grv Full Radius

Secondary Workpiece Material:

Non-Ferrous Materials,High-Temp Alloys,Hardened Materials,Steel,Stainless Steel,Cast Iron

Workpiece Material Facets - Secondary:

Non-Ferrous Materials,High-Temp Alloys,Hardened Materials,Steel,Stainless Steel,Cast Iron

[CL]Relief Clearance Angle lh:

7.000

[CM]Clearance Ang MainCutEdge:

12.000

[CR]Relief Clearance Angle rh:

7.000

[CUBMS]Unit of Tool:

B - Both Metric & Inch

[CUBWS]Units of Tool (Extract):

B - Both Metric & Inch

[GD]Gage Diameter Inch:

0.1570

[LI] Insert Length Inch:

0.7830

[LI] Insert Length Metric:

19.9000

[RC]Corner Radius Center Inch:

0.0785

[RC]Corner Radius Center mm:

2.0000

[SSC]Insert Size:

[S] Insert Thickness Inch:

0.1870

[S] Insert Thickness Metric:

4.7500

[W1]Insert Width Inch:

0.1210

[W1]Insert Width Metric:

3.0800

[W] Cutting Width Inch:

0.1570

[W] Cutting Width Metric:

4.0000

Manufactured By:

Kennametal
