KMT-1952760 by Kennametal
$
30
82
/ 1
- Part Number: 1952760
- UPC:
- Availability: Nothing
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

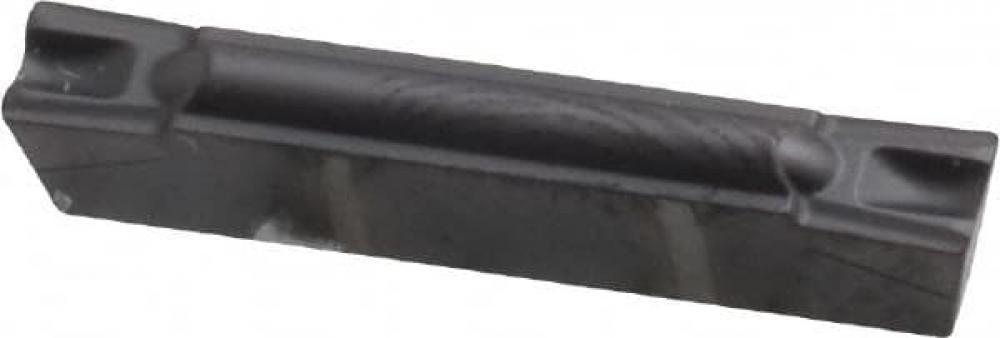

A4 Grooving Insert
Specifications
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Groove and Turn Indexable Inserts
Cutting Width (Decimal Inch):
0.118
Cutting Width (mm):
3
Grade:
KC5010
Maximum Depth of Cut:
0.138
Chipbreaker Mfgr's Designation:
GMP
Cutting Tool Material:
Carbide
Engineering Insert Geometry:
A4G_P_GMP
Insert Mounting:
6-ConvexPrismaticCrossSect
Insert Number of Cutting Edges:
2
ISO Catalog Number:
A4G0300M03P02GMP
MAR_PLATFORM_KMT:
A4
Profile Style:
01 -Grv/Thd Rectangle
Secondary Workpiece Material:
Non-Ferrous Materials,High-Temp Alloys,Hardened Materials,Steel,Stainless Steel,Cast Iron
Workpiece Material Facets - Secondary:
Non-Ferrous Materials,High-Temp Alloys,Hardened Materials,Steel,Stainless Steel,Cast Iron
[CL]Relief Clearance Angle lh:
6.000
[CM]Clearance Ang MainCutEdge:
12.000
[CR]Relief Clearance Angle rh:
6.000
[CUBMS]Unit of Tool:
B - Both Metric & Inch
[CUBWS]Units of Tool (Extract):
B - Both Metric & Inch
[GD]Gage Diameter Inch:
0.1180
[LI] Insert Length Inch:
0.7840
[LI] Insert Length Metric:
19.9000
[RL]Corner Radius lh Inch:
0.0080
[RL]Corner Radius lh Metric:
0.2000
[RR]Corner Radius rh Inch:
0.0080
[RR]Corner Radius rh Metric:
0.2000
[SSC]Insert Size:
3
[S] Insert Thickness Inch:
0.1580
[S] Insert Thickness Metric:
4.0300
[T]Cutting Depth Inch:
0.1380
[T]Cutting Depth Metric:
3.5000
[W1]Insert Width Inch:
0.1010
[W1]Insert Width Metric:
2.5800
[W] Cutting Width Inch:
0.1180
[W] Cutting Width Metric:
3.0000
Manufactured By:
Kennametal
