KMT-1952753 by Kennametal
$
28
05
/ 1
- Part Number: 1952753
- UPC:
- Availability: Nothing
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

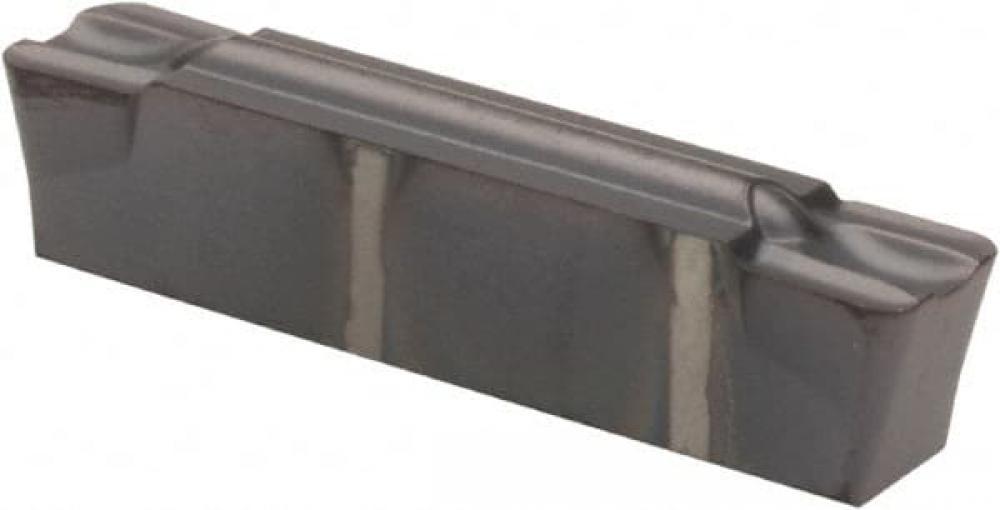

A4 Grooving Insert
Specifications
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Groove and Turn Indexable Inserts
Cutting Width (Decimal Inch):
0.159
Cutting Width (mm):
4.05
Grade:
KC5025
Maximum Depth of Cut:
0.134
Chipbreaker Mfgr's Designation:
GMP
Cutting Tool Material:
Carbide
Engineering Insert Geometry:
A4G_U_GMP
Insert Mounting:
6-ConvexPrismaticCrossSect
Insert Number of Cutting Edges:
2
ISO Catalog Number:
A4G0405M04U08GMP
MAR_PLATFORM_KMT:
A4
Profile Style:
01 -Grv/Thd Rectangle
Secondary Workpiece Material:
High-Temp Alloys,Cast Iron,Non-Ferrous Materials,Steel,Stainless Steel
Workpiece Material Facets - Secondary:
High-Temp Alloys,Cast Iron,Non-Ferrous Materials,Steel,Stainless Steel
[APMAX]Prof. ap max. Inch:
0.1340
[APMAX]Prof. ap max. Metric:
3.4000
[CL]Relief Clearance Angle lh:
6.000
[CM]Clearance Ang MainCutEdge:
12.000
[CR]Relief Clearance Angle rh:
6.000
[CUBMS]Unit of Tool:
B - Both Metric & Inch
[CUBWS]Units of Tool (Extract):
B - Both Metric & Inch
[GD]Gage Diameter Inch:
0.1570
[LI] Insert Length Inch:
0.7910
[LI] Insert Length Metric:
20.1000
[RL]Corner Radius lh Inch:
0.0310
[RL]Corner Radius lh Metric:
0.8000
[RR]Corner Radius rh Inch:
0.0310
[RR]Corner Radius rh Metric:
0.8000
[SSC]Insert Size:
4
[S] Insert Thickness Inch:
0.1870
[S] Insert Thickness Metric:
4.7500
[T]Cutting Depth Inch:
0.1340
[T]Cutting Depth Metric:
3.4000
[W1]Insert Width Inch:
0.1410
[W1]Insert Width Metric:
3.5800
[W] Cutting Width Inch:
0.1590
[W] Cutting Width Metric:
4.0500
Manufactured By:
Kennametal
