KMT-1940975

KMT-1940975 by Kennametal

$

31

43

/ 1

Part Number: 1940975
UPC:
Availability:

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

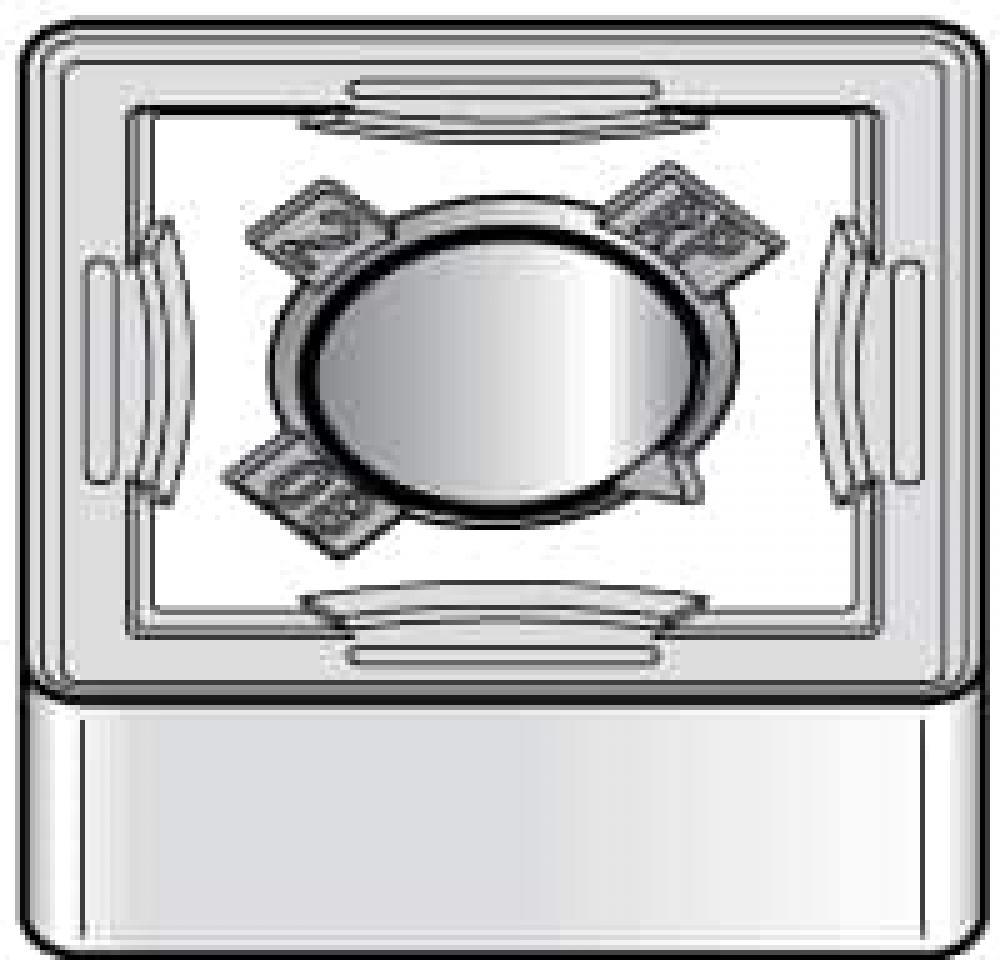

ANSI/ISO Turning Insert SN..

Specifications

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Inserts

Corner Radius (Decimal Inch):

0.046875

Corner Radius (Inch):

Mar-64

Corner Radius (mm):

1.191

Grade:

KC5010

Primary Workpiece Material:

High-Temp Alloys

Chipbreaker Mfgr's Designation:

RP

Cutting Tool Material:

Carbide

Engineering Insert Geometry:

MG_RP

Hand of Tool:

N - Neutral

Insert Mounting:

2-Cylindrical Fixing Hole

Insert Num of Cutting Edges:

8

Insert Shape - Marcom Calc:

Square 90

ISO Catalog Number:

SNMG190612RP

MAR_PLATFORM_KMT:

Kenloc

Secondary Workpiece Material:

Steel,Stainless Steel

Workpiece Material Facets - Secondary:

Steel,Stainless Steel

[ALPHANM] Clearance Ang Minor:

0.000

[ALPHAN] Clearance Angle Major:

0.000

[CUBMS]Unit of Tool:

B - Both Metric & Inch

[CUBWS]Units of Tool (Extract):

B - Both Metric & Inch

[D1] Insert Hole Size Inch:

0.3120

[D1] Insert Hole Size Metric:

7.9200

[D] Insert IC Size Fraction:

3/4

[D] Insert IC Size Inch:

0.7500

[D] Insert IC Size Metric:

19.0500

[GAMMA] Insert Rake Angle:

5.000

[L10] Ins Cut Edge Length In:

0.7500

[L10] Ins Cut Edge Length mm:

19.0500

[M] Insert Gage Dimens. Metric:

3.4520

[M] Insert Gage Dimension Inch:

0.1359

[REPSILON] Corner Radius Frac:

3/64

[REPSILON] Corner Radius Inch:

0.046875

[REPSILON] Corner Radius MM:

1.1910

[S] Insert Thickness Fraction:

1/4

[S] Insert Thickness Inch:

0.2500

[S] Insert Thickness Metric:

6.3500

Manufactured By:

Kennametal
