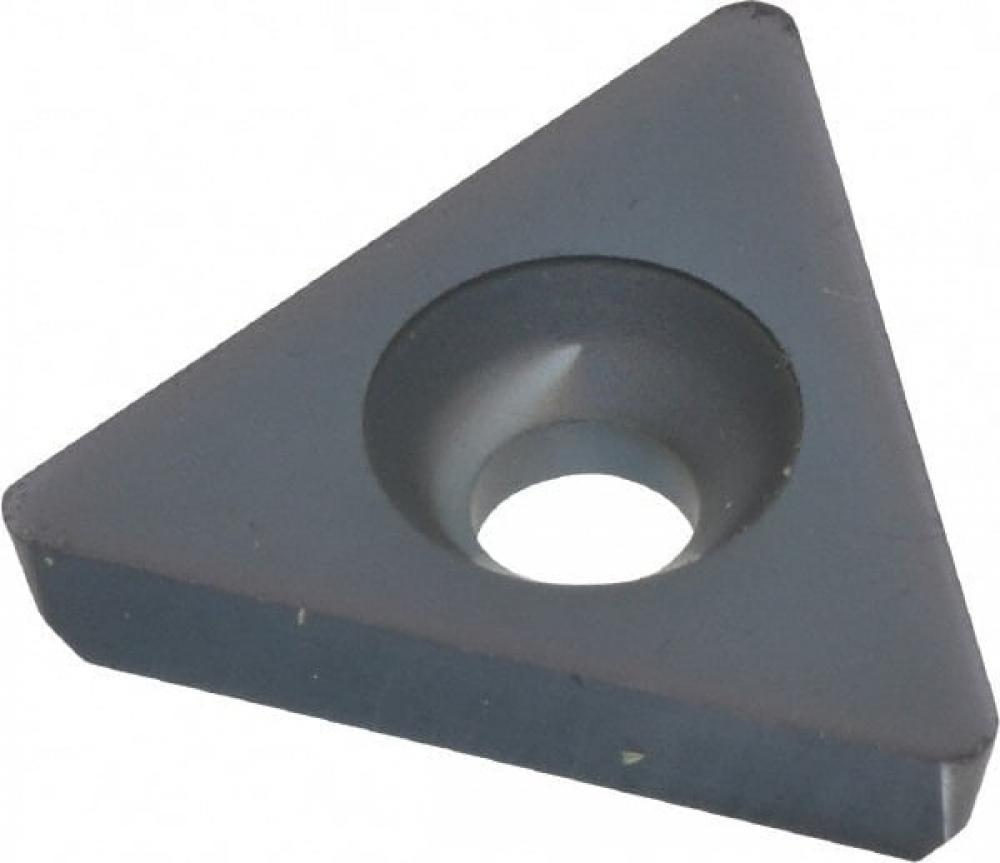

KMT-1937621 by Kennametal
$
19
00
/ 1
- Part Number: 1937621
- UPC:
- Availability: Nothing
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
ANSI/ISO Turning Insert TD..
Specifications
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Groove and Turn Indexable Inserts
Corner Radius (Decimal Inch):
0.031
Corner Radius (Inch):
0.031
Corner Radius (mm):
0.787
Grade:
KC5010
Primary Workpiece Material:
High-Temp Alloys
Cutting Tool Material:
Carbide
Engineering Insert Geometry:
CB
Hand of Tool:
N - Neutral
Insert Mounting:
4-Part Cycl w/70-90 TaperScrew
Insert Num of Cutting Edges:
3
Insert Shape - Marcom Calc:
Triangle 60
ISO Catalog Number:
TPCB160308
MAR_PLATFORM_KMT:
Screw-On
Secondary Workpiece Material:
Steel,Stainless Steel
Workpiece Material Facets - Secondary:
Steel,Stainless Steel
[ALPHAN] Clearance Angle Major:
11.000
[CUBMS]Unit of Tool:
B - Both Metric & Inch
[CUBWS]Units of Tool (Extract):
B - Both Metric & Inch
[D1] Insert Hole Size Inch:
0.1300
[D1] Insert Hole Size Metric:
3.3000
[D] Insert IC Size Fraction:
3/8
[D] Insert IC Size Inch:
0.3750
[D] Insert IC Size Metric:
9.5250
[L10] Ins Cut Edge Length In:
0.6496
[L10] Ins Cut Edge Length mm:
16.5000
[M] Insert Gage Dimens. Metric:
13.5100
[M] Insert Gage Dimension Inch:
0.5320
[REPSILON] Corner Radius Frac:
.031
[REPSILON] Corner Radius Inch:
0.031000
[REPSILON] Corner Radius MM:
0.7870
[S] Insert Thickness Fraction:
.127
[S] Insert Thickness Inch:
0.1270
[S] Insert Thickness Metric:
3.2300
Manufactured By:
Kennametal
