KMT-1937609 by Kennametal
$
24
24
/ 1
- Part Number: 1937609
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

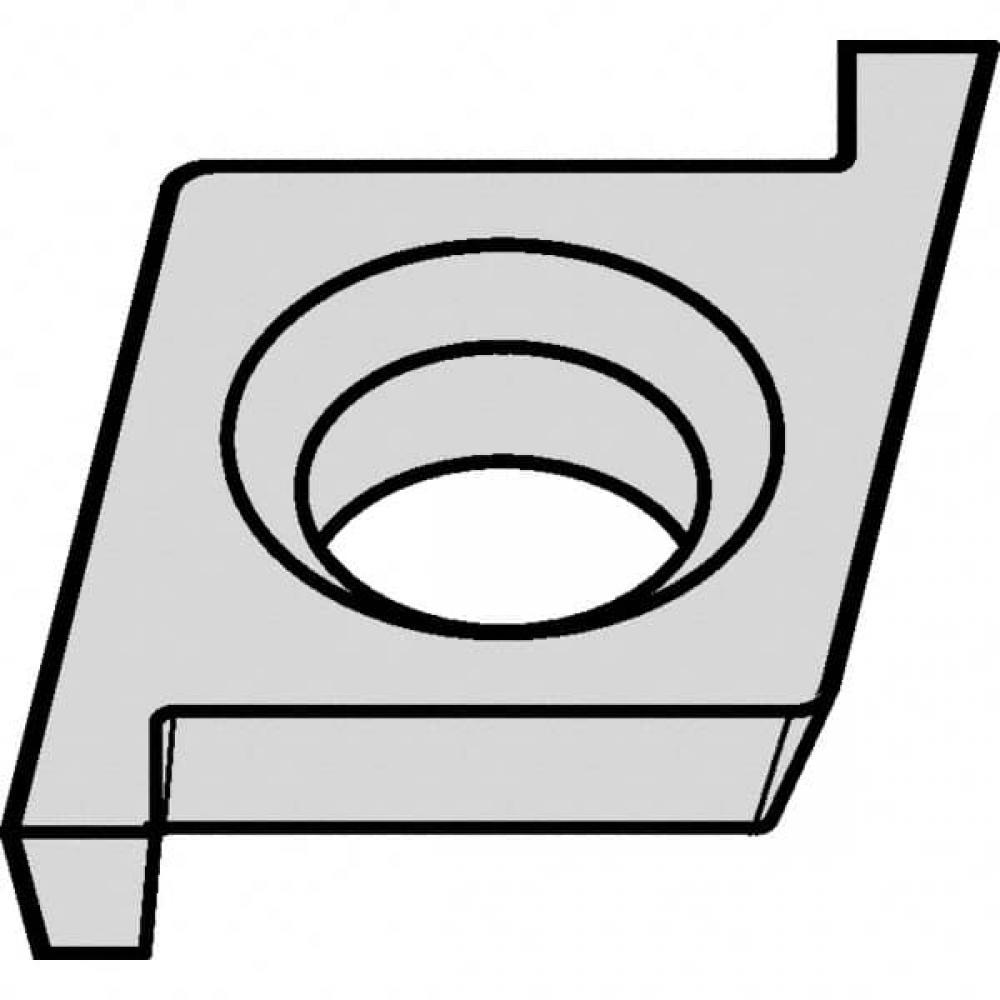

ANSI/ISO Turning Insert CP..
Specifications
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Groove and Turn Indexable Inserts
Cutting Width (Decimal Inch):
0.06
Cutting Width (mm):
1.524
Grade:
KC5010
Maximum Depth of Cut:
0.065
Primary Workpiece Material:
High-Temp Alloys
Cutting Tool Material:
Carbide
Insert Mounting:
4-Part Cycl w/70-90 TaperScrew
Insert Number of Cutting Edges:
2
ISO Catalog Number:
CPG190150R
MAR_PLATFORM_KMT:
Screw-On
Profile Style:
01 -Grv/Thd Rectangle
Secondary Workpiece Material:
Steel,Stainless Steel
Workpiece Material Facets - Secondary:
Steel,Stainless Steel
[CL]Relief Clearance Angle lh:
2.000
[CM]Clearance Ang MainCutEdge:
11.000
[CR]Relief Clearance Angle rh:
2.000
[CUBMS]Unit of Tool:
B - Both Metric & Inch
[CUBWS]Units of Tool (Extract):
B - Both Metric & Inch
[D] Insert IC Size Inch:
0.2500
[D] Insert IC Size Metric:
6.3500
[S] Insert Thickness Inch:
0.0750
[S] Insert Thickness Metric:
1.9050
[T]Cutting Depth Inch:
0.0650
[T]Cutting Depth Metric:
1.6510
[W] Cutting Width Inch:
0.0600
[W] Cutting Width Metric:
1.5240
Manufactured By:
Kennametal
