KMT-1937598

KMT-1937598 by Kennametal

$

16

57

/ 1

Part Number: 1937598
UPC:
Availability:

Nothing

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

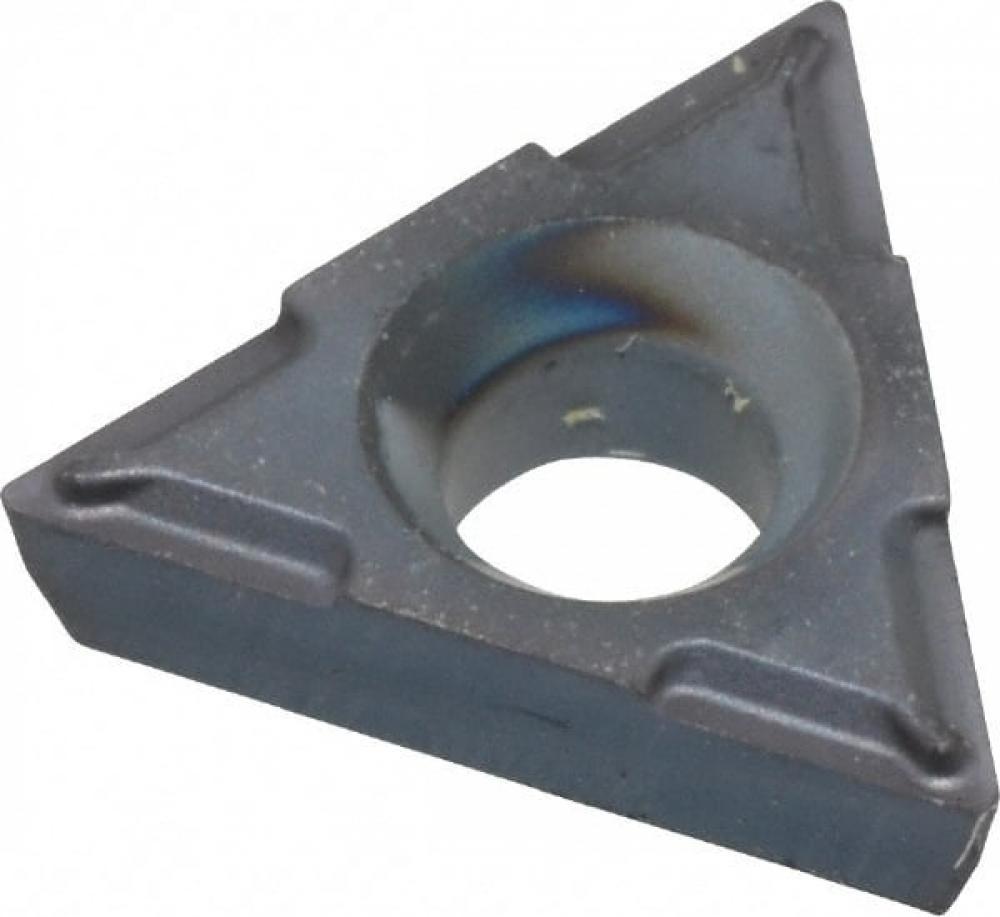

ANSI/ISO Turning Insert TP..

Specifications

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Inserts

Corner Radius (Decimal Inch):

0.007

Corner Radius (Inch):

0.007

Corner Radius (mm):

0.18

Grade:

KC5010

Primary Workpiece Material:

High-Temp Alloys

Cutting Tool Material:

Carbide

Engineering Insert Geometry:

CH

Hand of Tool:

N - Neutral

Insert Mounting:

4-Part Cycl w/70-90 TaperScrew

Insert Num of Cutting Edges:

3

Insert Shape - Marcom Calc:

Triangle 60

ISO Catalog Number:

TPCH110202

MAR_PLATFORM_KMT:

Screw-On

Secondary Workpiece Material:

Steel,Stainless Steel

Workpiece Material Facets - Secondary:

Steel,Stainless Steel

[ALPHAN] Clearance Angle Major:

11.000

[CUBMS]Unit of Tool:

B - Both Metric & Inch

[CUBWS]Units of Tool (Extract):

B - Both Metric & Inch

[D1] Insert Hole Size Inch:

0.1300

[D1] Insert Hole Size Metric:

3.3020

[D] Insert IC Size Fraction:

.256

[D] Insert IC Size Inch:

0.2560

[D] Insert IC Size Metric:

6.5000

[KRA] Lead Angle ANSI:

30.000

[KRI] Lead Angle ISO:

60.000

[L10] Ins Cut Edge Length In:

0.4430

[L10] Ins Cut Edge Length mm:

11.2600

[M] Insert Gage Dimens. Metric:

9.3500

[M] Insert Gage Dimension Inch:

0.3680

[REPSILON] Corner Radius Frac:

.007

[REPSILON] Corner Radius Inch:

0.007000

[REPSILON] Corner Radius MM:

0.1800

[S] Insert Thickness Fraction:

3/32

[S] Insert Thickness Inch:

0.0938

[S] Insert Thickness Metric:

2.3830

Manufactured By:

Kennametal
