KMT-1937571

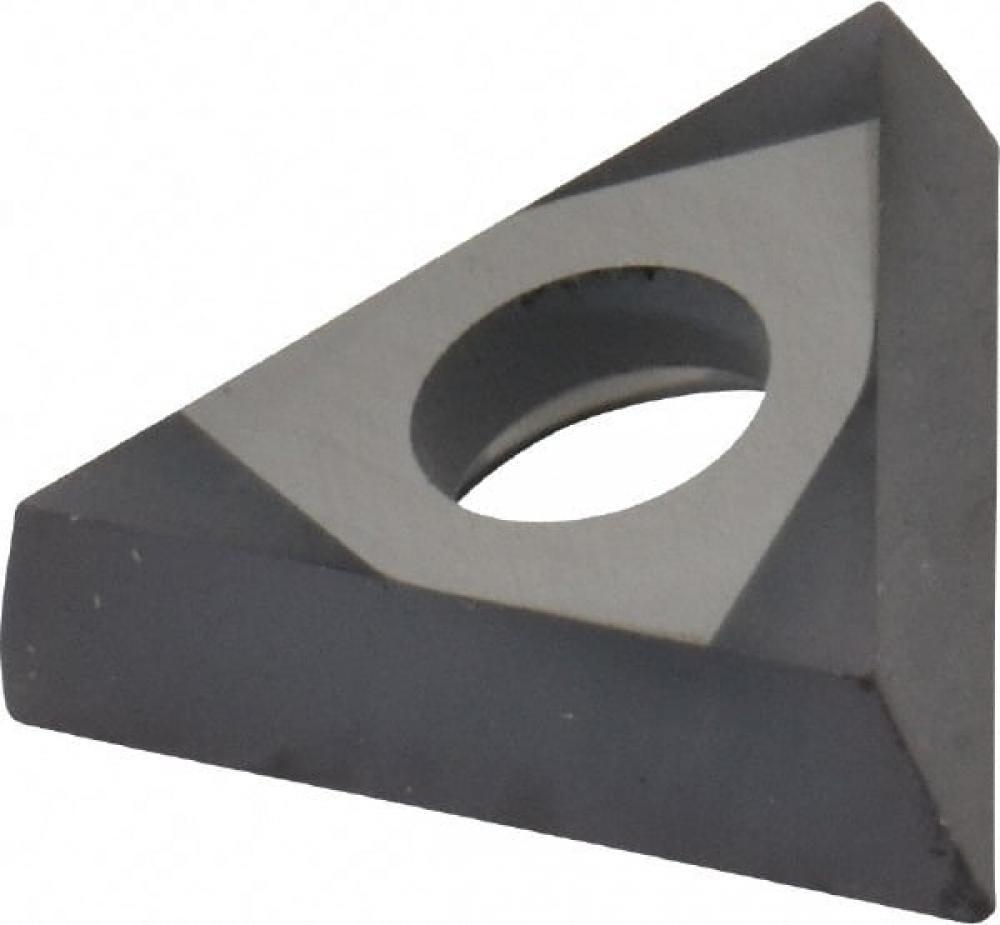

KMT-1937571 by Kennametal

$

14

52

/ 1

Part Number: 1937571
UPC:
Availability:

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

ANSI/ISO Turning Insert TP..

Specifications

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Inserts

Corner Radius (Decimal Inch):

0.007

Corner Radius (Inch):

0.007

Corner Radius (mm):

0.178

Grade:

KC5010

Primary Workpiece Material:

High-Temp Alloys

Cutting Tool Material:

Carbide

Engineering Insert Geometry:

CB

Hand of Tool:

N - Neutral

Insert Mounting:

4-Part Cycl w/70-90 TaperScrew

Insert Num of Cutting Edges:

3

Insert Shape - Marcom Calc:

Triangle 60

ISO Catalog Number:

TPCB110202

MAR_PLATFORM_KMT:

Screw-On

Secondary Workpiece Material:

Steel,Stainless Steel

Workpiece Material Facets - Secondary:

Steel,Stainless Steel

[ALPHAN] Clearance Angle Major:

11.000

[CUBMS]Unit of Tool:

B - Both Metric & Inch

[CUBWS]Units of Tool (Extract):

B - Both Metric & Inch

[D1] Insert Hole Size Inch:

0.1300

[D1] Insert Hole Size Metric:

3.3020

[D] Insert IC Size Fraction:

1/4

[D] Insert IC Size Inch:

0.2500

[D] Insert IC Size Metric:

6.3500

[M] Insert Gage Dimens. Metric:

9.3470

[M] Insert Gage Dimension Inch:

0.3680

[REPSILON] Corner Radius Frac:

.007

[REPSILON] Corner Radius Inch:

0.007000

[REPSILON] Corner Radius MM:

0.1780

[S] Insert Thickness Fraction:

.096

[S] Insert Thickness Inch:

0.0960

[S] Insert Thickness Metric:

2.4400

Manufactured By:

Kennametal
