KMT-1937563

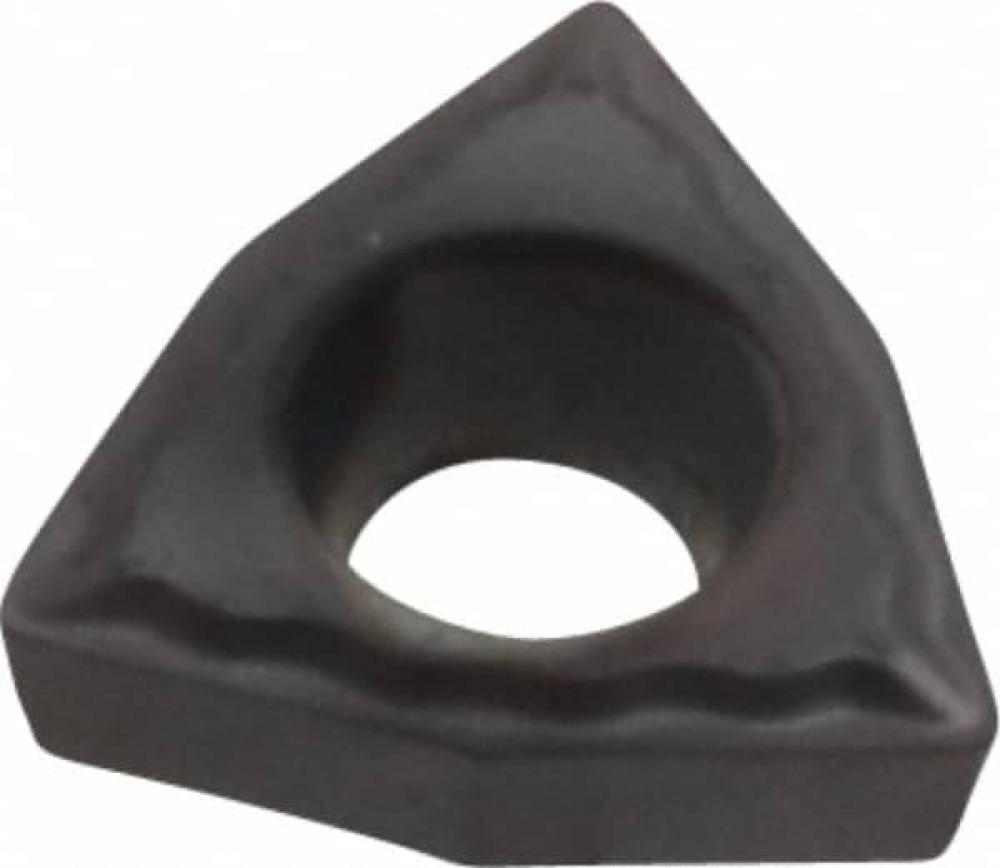

KMT-1937563 by Kennametal

$

11

55

/ 1

Part Number: 1937563
UPC:
Availability:

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

ANSI/ISO Turning Insert WP..

Specifications

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Inserts

Corner Radius (Decimal Inch):

0.008

Corner Radius (Inch):

0.008

Corner Radius (mm):

0.203

Grade:

KC5010

Primary Workpiece Material:

High-Temp Alloys

Chipbreaker Mfgr's Designation:

UF

Cutting Tool Material:

Carbide

Engineering Insert Geometry:

GT_UF

Hand of Tool:

N - Neutral

Insert Mounting:

3-Part Cycl w/40-60 TaperScrew

Insert Num of Cutting Edges:

3

Insert Shape - Marcom Calc:

Trigon 80

ISO Catalog Number:

WPGTS30102UF

MAR_PLATFORM_KMT:

Screw-On

Secondary Workpiece Material:

Steel,Stainless Steel

Workpiece Material Facets - Secondary:

Steel,Stainless Steel

[ALPHANM] Clearance Ang Minor:

11.000

[ALPHAN] Clearance Angle Major:

11.000

[CUBMS]Unit of Tool:

B - Both Metric & Inch

[CUBWS]Units of Tool (Extract):

B - Both Metric & Inch

[D1] Insert Hole Size Inch:

0.0850

[D1] Insert Hole Size Metric:

2.1600

[D] Insert IC Size Fraction:

3/16

[D] Insert IC Size Inch:

0.1875

[D] Insert IC Size Metric:

4.7600

[L10] Ins Cut Edge Length In:

0.1280

[L10] Ins Cut Edge Length mm:

3.2600

[M] Insert Gage Dimens. Metric:

1.2100

[M] Insert Gage Dimension Inch:

0.0477

[REPSILON] Corner Radius Frac:

.008

[REPSILON] Corner Radius Inch:

0.008000

[REPSILON] Corner Radius MM:

0.2030

[S] Insert Thickness Fraction:

1/16

[S] Insert Thickness Inch:

0.0625

[S] Insert Thickness Metric:

1.5900

Manufactured By:

Kennametal
