KMT-1937550

KMT-1937550 by Kennametal

$

16

05

/ 1

Part Number: 1937550
UPC:
Availability:

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

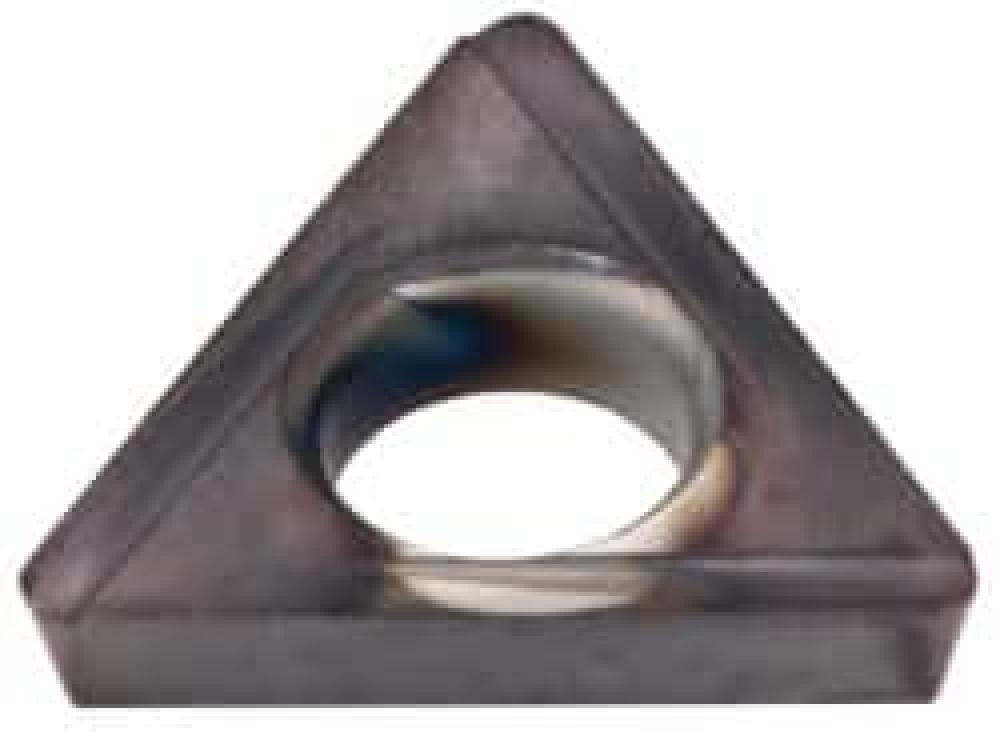

ANSI/ISO Turning Insert TD..

Specifications

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Inserts

Corner Radius (Decimal Inch):

0.015

Corner Radius (Inch):

0.015

Corner Radius (mm):

0.38

Grade:

KC5010

Primary Workpiece Material:

High-Temp Alloys

Cutting Tool Material:

Carbide

Engineering Insert Geometry:

HH

Hand of Tool:

L - Left

Insert Mounting:

4-Part Cycl w/70-90 TaperScrew

Insert Num of Cutting Edges:

3

Insert Shape - Marcom Calc:

Triangle 60

ISO Catalog Number:

TDHH07T1204L

MAR_PLATFORM_KMT:

Screw-On

Secondary Workpiece Material:

Steel,Stainless Steel

Workpiece Material Facets - Secondary:

Steel,Stainless Steel

[ALPHANM] Clearance Ang Minor:

15.000

[ALPHAN] Clearance Angle Major:

15.000

[CUBMS]Unit of Tool:

B - Both Metric & Inch

[CUBWS]Units of Tool (Extract):

B - Both Metric & Inch

[D1] Insert Hole Size Inch:

0.0950

[D1] Insert Hole Size Metric:

2.4100

[D] Insert IC Size Fraction:

.160

[D] Insert IC Size Inch:

0.1600

[D] Insert IC Size Metric:

4.0640

[GAMMA] Insert Rake Angle:

15.000

[L10] Ins Cut Edge Length In:

0.2770

[L10] Ins Cut Edge Length mm:

7.0400

[Leff]Ins Effect.Cut Length In:

0.1720

[Leff]Ins Effect.Cut Length mm:

4.3600

[M] Insert Gage Dimens. Metric:

5.7150

[M] Insert Gage Dimension Inch:

0.2250

[REPSILON] Corner Radius Frac:

.015

[REPSILON] Corner Radius Inch:

0.015000

[REPSILON] Corner Radius MM:

0.3800

[S] Insert Thickness Fraction:

.0469

[S] Insert Thickness Inch:

0.0469

[S] Insert Thickness Metric:

1.1910

Manufactured By:

Kennametal
