KMT-1937542

KMT-1937542 by Kennametal

$

16

05

/ 1

Part Number: 1937542
UPC:
Availability:

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

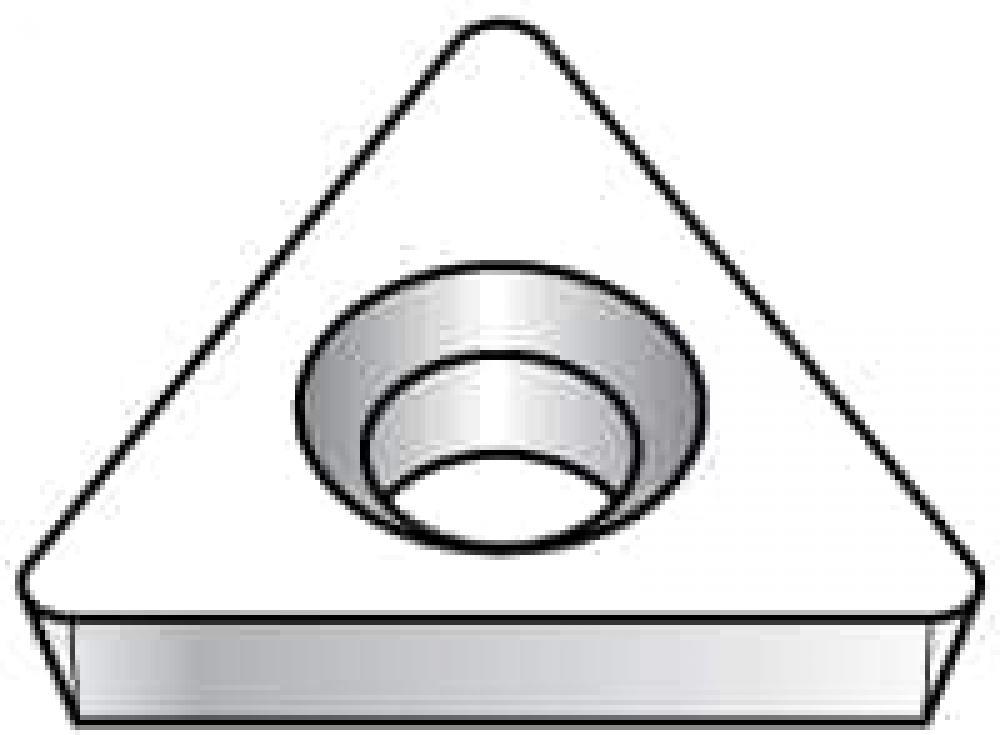

ANSI/ISO Turning Insert TD..

Specifications

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Inserts

Corner Radius (Decimal Inch):

0.031

Corner Radius (Inch):

Jan-32

Corner Radius (mm):

0.787

Grade:

KC5025

Cutting Tool Material:

Carbide

Engineering Insert Geometry:

HB

Hand of Tool:

N - Neutral

Insert Mounting:

4-Part Cycl w/70-90 TaperScrew

Insert Num of Cutting Edges:

3

Insert Shape - Marcom Calc:

Triangle 60

ISO Catalog Number:

TDHB07T1208

MAR_PLATFORM_KMT:

Screw-On

Secondary Workpiece Material:

Stainless Steel,High-Temp Alloys

Workpiece Material Facets - Secondary:

Stainless Steel,High-Temp Alloys

[ALPHANM] Clearance Ang Minor:

15.000

[ALPHAN] Clearance Angle Major:

15.000

[CUBMS]Unit of Tool:

B - Both Metric & Inch

[CUBWS]Units of Tool (Extract):

B - Both Metric & Inch

[D1] Insert Hole Size Inch:

0.0938

[D1] Insert Hole Size Metric:

2.3870

[D] Insert IC Size Fraction:

.160

[D] Insert IC Size Inch:

0.1575

[D] Insert IC Size Metric:

4.0640

[L10] Ins Cut Edge Length In:

0.2770

[L10] Ins Cut Edge Length mm:

7.0360

[M] Insert Gage Dimens. Metric:

5.2130

[M] Insert Gage Dimension Inch:

0.2053

[REPSILON] Corner Radius Frac:

1/32

[REPSILON] Corner Radius Inch:

0.031000

[REPSILON] Corner Radius MM:

0.7870

[S] Insert Thickness Fraction:

3/64

[S] Insert Thickness Inch:

0.0469

[S] Insert Thickness Metric:

1.1910

Manufactured By:

Kennametal
