KMT-1937530

KMT-1937530 by Kennametal

$

20

58

/ 1

Part Number: 1937530
UPC:
Availability:

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

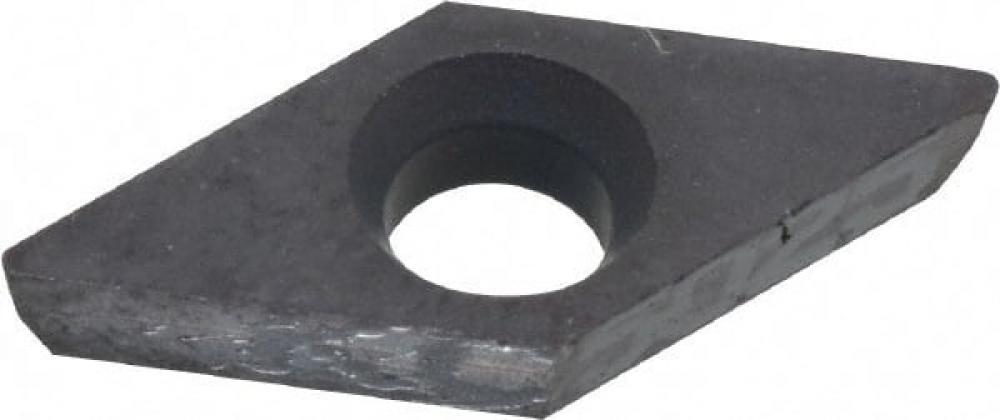

ANSI/ISO Turning Insert GP..

Specifications

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Inserts

Corner Radius (Decimal Inch):

0.007

Corner Radius (Inch):

0.007

Corner Radius (mm):

0.18

Grade:

KC5025

Cutting Tool Material:

Carbide

Engineering Insert Geometry:

CD

Hand of Tool:

N - Neutral

Insert Mounting:

3-Part Cycl w/40-60 TaperScrew

Insert Num of Cutting Edges:

2

Insert Shape - Marcom Calc:

Rhombic 45

ISO Catalog Number:

GPCD050102

MAR_PLATFORM_KMT:

Screw-On

Secondary Workpiece Material:

Stainless Steel,High-Temp Alloys

Workpiece Material Facets - Secondary:

Stainless Steel,High-Temp Alloys

[ALPHAN] Clearance Angle Major:

11.000

[CUBMS]Unit of Tool:

B - Both Metric & Inch

[CUBWS]Units of Tool (Extract):

B - Both Metric & Inch

[D1] Insert Hole Size Inch:

0.0840

[D1] Insert Hole Size Metric:

2.1300

[D] Insert IC Size Fraction:

5/32

[D] Insert IC Size Inch:

0.1562

[D] Insert IC Size Metric:

3.9670

[L10] Ins Cut Edge Length In:

0.2210

[L10] Ins Cut Edge Length mm:

5.6100

[M] Insert Gage Dimens. Metric:

2.9130

[M] Insert Gage Dimension Inch:

0.1147

[REPSILON] Corner Radius Frac:

.007

[REPSILON] Corner Radius Inch:

0.007000

[REPSILON] Corner Radius MM:

0.1800

[S] Insert Thickness Fraction:

.062

[S] Insert Thickness Inch:

0.0620

[S] Insert Thickness Metric:

1.5900

Manufactured By:

Kennametal
