KMT-1937511

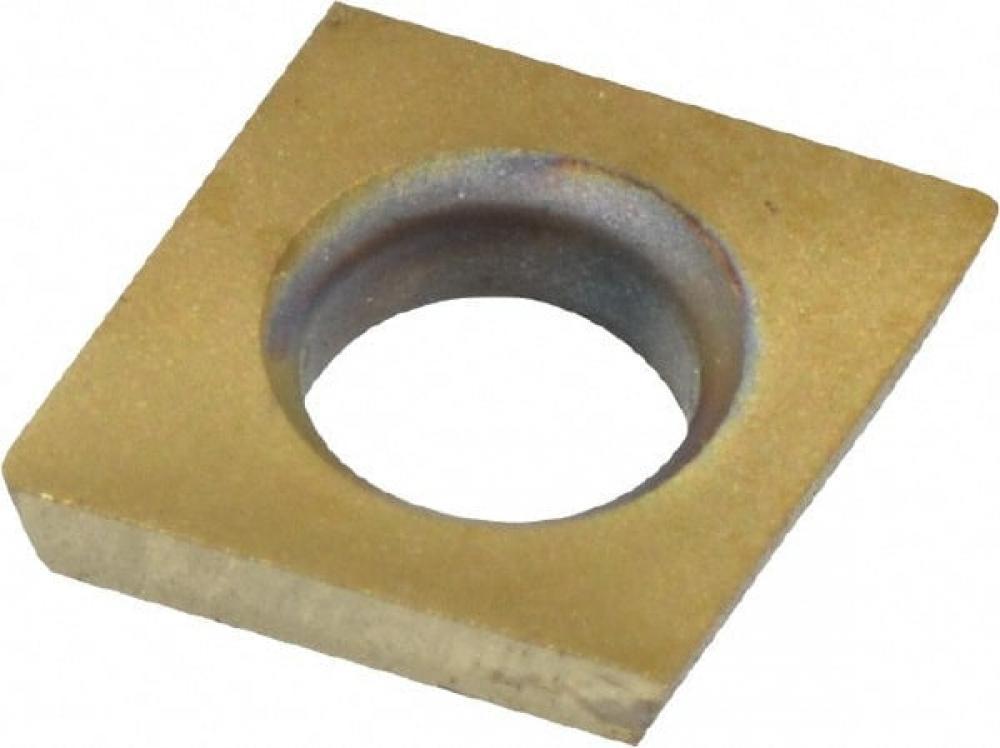

KMT-1937511 by Kennametal

$

19

03

/ 1

Part Number: 1937511
UPC:
Availability:

undefined

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

ANSI/ISO Turning Insert CD..

Specifications

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Inserts

Corner Radius (Decimal Inch):

0.007

Corner Radius (Inch):

0.007

Corner Radius (mm):

0.18

Grade:

KT315

Primary Workpiece Material:

Steel

Cutting Tool Material:

Cermet

Engineering Insert Geometry:

HB

Hand of Tool:

N - Neutral

Insert Mounting:

4-Part Cycl w/70-90 TaperScrew

Insert Num of Cutting Edges:

2

Insert Shape - Marcom Calc:

Diamond/Rhombic 80

ISO Catalog Number:

CDHBS4T002

MAR_PLATFORM_KMT:

Screw-On

Secondary Workpiece Material:

Stainless Steel,Cast Iron

Workpiece Material Facets - Secondary:

Stainless Steel,Cast Iron

[ALPHANM] Clearance Ang Minor:

15.000

[ALPHAN] Clearance Angle Major:

15.000

[CUBMS]Unit of Tool:

B - Both Metric & Inch

[CUBWS]Units of Tool (Extract):

B - Both Metric & Inch

[D1] Insert Hole Size Inch:

0.0840

[D1] Insert Hole Size Metric:

2.1300

[D] Insert IC Size Fraction:

5/32

[D] Insert IC Size Inch:

0.1563

[D] Insert IC Size Metric:

3.9690

[L10] Ins Cut Edge Length In:

0.1590

[L10] Ins Cut Edge Length mm:

4.0300

[M] Insert Gage Dimens. Metric:

1.0040

[M] Insert Gage Dimension Inch:

0.0395

[REPSILON] Corner Radius Frac:

.007

[REPSILON] Corner Radius Inch:

0.007000

[REPSILON] Corner Radius MM:

0.1800

[S] Insert Thickness Fraction:

.040

[S] Insert Thickness Inch:

0.0400

[S] Insert Thickness Metric:

1.0200

Manufactured By:

Kennametal
