KMT-1520613

KMT-1520613 by Kennametal

Call For Price

Part Number: 1520613
UPC:
Availability:

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

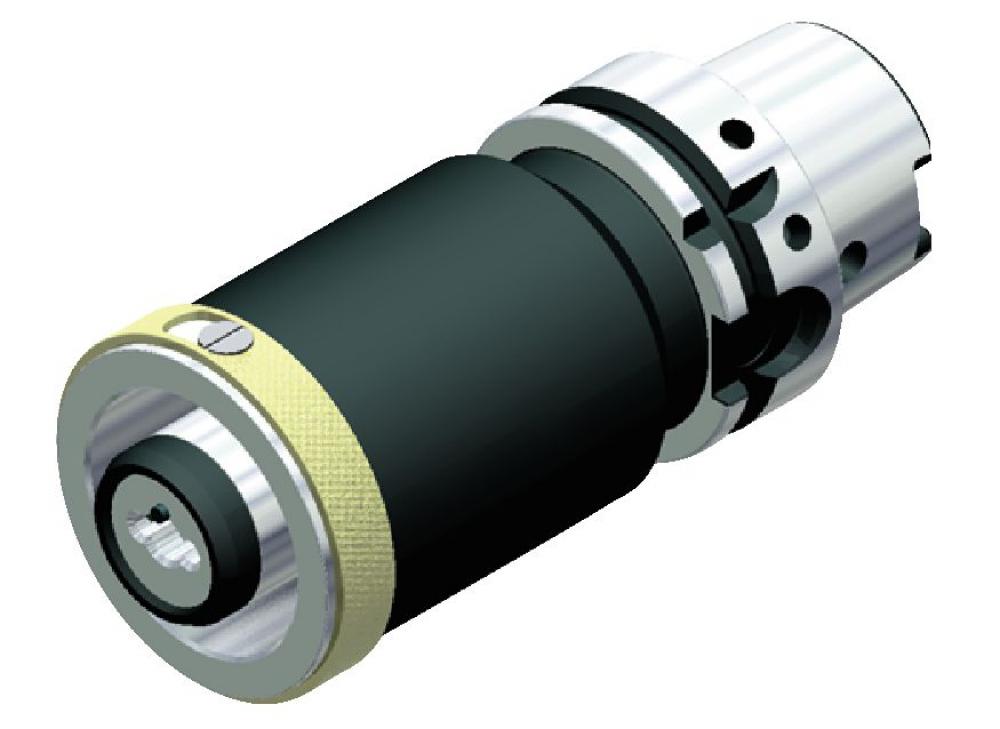

REDUCER HSK40C HSK32

Specifications

Details

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

End Mill Holders, Adapters and Accessories

Actuation Screw ID Drive Size:

3 mm

Adapter Style Machine Side:

HSK

Adapter Style Machine Side-Marcom Calc:

HSK

Adapter Type Machine Side:

Taper Shank

Adapter Type Workpiece Side:

HSK - Hollow Taper Shank

Coolant Entry Style:

Concentric Axial Coolant

Coolant Exit:

Concentric Axial Coolant

Coolant Supply:

Yes

Front End Tool Type:

Reducer

Hand of Tool:

N - Neutral

ISO Catalog Number:

HSK40CHSK32050M

MAR_PLATFORM_KMT:

HSK40

Max RPM:

30000

[A]Coolant Hole Dia Inch:

0.1969

[A]Coolant Hole Diameter Metric:

5.0000

[CSMS]System Size Machine Side:

HSK40C

[CSWS]System SizeWorkpieceSide:

HSK32

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

MM - Metric

[D1]Adapt/Shank/BoreDiaWKPS In:

1.2598

[D1]Adapt/Shank/BoreDiaWKPS mm:

32.0000

[D2]Body Dia 1 Workpce Side In:

1.2590

[D2]Body Dia 1 Workpce Side mm:

31.9800

[D5]Body Dia. Machine Side In:

1.5748

[D5]Body Dia. Machine Side mm:

40.0000

[D]Adapter/Shank/Bore Dia Frac:

1.5748

[D]Adapter/Shank/Bore Dia Inch:

1.5748

[D]Adapter/Shank/Bore Dia mm:

40.0000

[FLGT]Flange Length Metric:

10.0000

[H1] Centerline Height Inch:

0.0000

[H1] Centerline Height Metric:

0.0000

[L1]Gage Length 1 Inch:

1.9685

[L1]Gage Length 1 Metric:

50.0000

[L2]Usable Length Inch:

1.5748

[L2]Usable Length Metric:

40.0000

[L4] Flange-Front End Dist In:

1.5748

[L4] Flange-Front End Dist mm:

40.0000

[LF]Functional Length Inch:

1.9685

[LF]Functional Length Metric:

50.0000

[LPR]Protruding Length Inch:

1.9685

[LPR]Protruding Length Metric:

50.0000

[LS] Shank Length Inch:

0.7874

[LS] Shank Length Metric:

20.0000

[LTA]Tool Assembly Length Inch:

1.9685

[LTA]Tool Assembly Length mm:

50.0000

[L] Overall Length Inch:

2.7559

[L] Overall Length Metric:

70.0000

Manufactured By:

Kennametal
