KMT-1519685

KMT-1519685 by Kennametal

Call For Price

Part Number: 1519685
UPC:
Availability:

Nothing

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

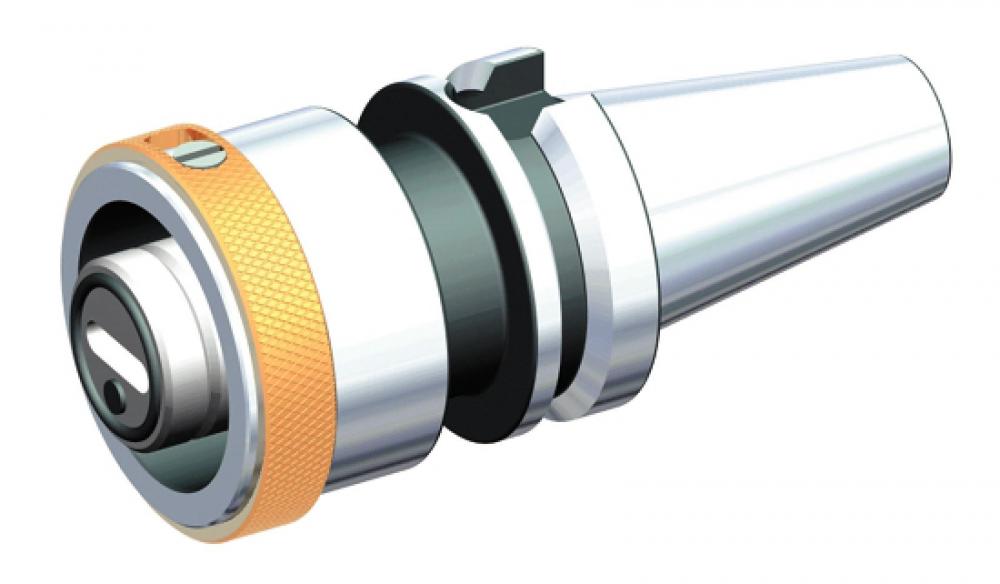

ADAPTOR BT40 HSK40 B

Specifications

Details

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

End Mill Holders, Adapters and Accessories

Actuation Screw ID Drive Size:

3 mm

Adapter Style Machine Side:

BT-JIS.B 6339

Adapter Style Machine Side-Marcom Calc:

BT Style BAD w/Cnt&DCntCool

Adapter Type Machine Side:

Taper Shank

Adapter Type Workpiece Side:

HSK - Hollow Taper Shank

Coolant Entry Style:

Flange & Axial Coolant

Coolant Exit:

Concentric Axial Coolant

Coolant Supply:

Yes

Front End Tool Type:

HSK Modular Adapter

Hand of Tool:

N - Neutral

ISO Catalog Number:

BT40BHSK40060M

MAR_PLATFORM_KMT:

BT40

Max RPM:

30000

[A]Coolant Hole Dia Inch:

0.3150

[A]Coolant Hole Diameter Metric:

8.0000

[CSMS]System Size Machine Side:

BT40

[CSWS]System SizeWorkpieceSide:

HSK40

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

MM - Metric

[D1]Adapt/Shank/BoreDiaWKPS In:

1.5748

[D1]Adapt/Shank/BoreDiaWKPS mm:

40.0000

[D2]Body Dia 1 Workpce Side In:

1.5400

[D2]Body Dia 1 Workpce Side mm:

39.9800

[D5]Body Dia. Machine Side In:

2.4800

[D5]Body Dia. Machine Side mm:

63.0000

[D]Adapter/Shank/Bore Dia Frac:

1 3/4

[D]Adapter/Shank/Bore Dia Inch:

1.7500

[D]Adapter/Shank/Bore Dia mm:

44.4500

[FLGT]Flange Length Metric:

25.0000

[H1] Centerline Height Inch:

0.0000

[H1] Centerline Height Metric:

0.0000

[L1]Gage Length 1 Inch:

2.3622

[L1]Gage Length 1 Metric:

60.0000

[LF]Functional Length Inch:

2.3622

[LF]Functional Length Metric:

60.0000

[LPR]Protruding Length Inch:

2.3622

[LPR]Protruding Length Metric:

60.0000

[LS] Shank Length Inch:

2.5748

[LS] Shank Length Metric:

65.4000

[LTA]Tool Assembly Length Inch:

2.3622

[LTA]Tool Assembly Length mm:

60.0000

[L] Overall Length Inch:

4.9370

[L] Overall Length Metric:

125.4000

Manufactured By:

Kennametal
