KMT-1315360

KMT-1315360 by Kennametal

Call For Price

Part Number: 1315360
UPC:
Availability:

Nothing

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

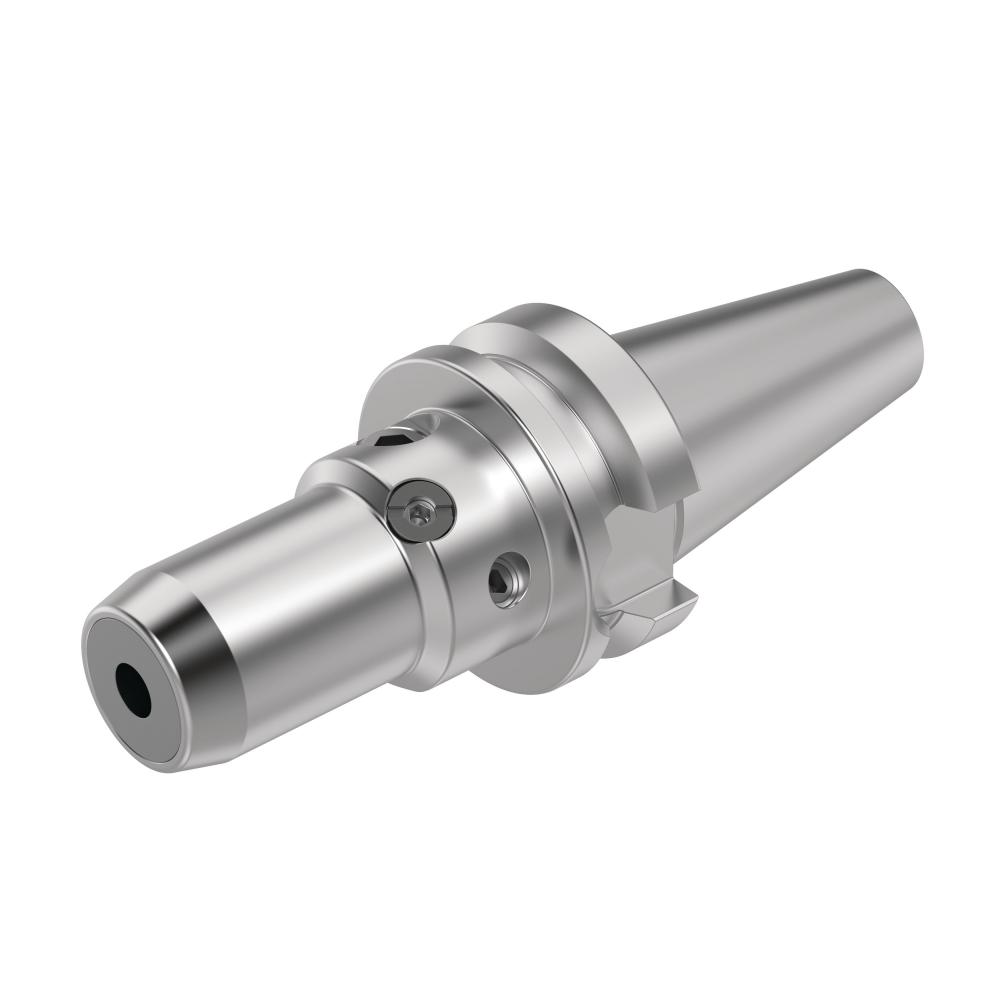

BT50B HYDRAULIC CHUCK HP Ø25X115MM

Specifications

Details

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Hydraulic Holders

Actuation Screw ID Drive Size:

6 mm

Adapter Style Machine Side:

BT-JIS.B 6339

Adapter Style Machine Side-Marcom Calc:

BT Style BAD w/Cnt&DCntCool

Adapter Type Machine Side:

Taper Shank

Adapter Type Workpiece Side:

ZYL - Cylindrical Adapter

Coolant Entry Style:

Flange & Axial Coolant

Coolant Exit:

Concentric Axial Coolant

Coolant Supply:

Yes

Front End Tool Type:

Hydraulic Chuck

Hand of Tool:

N - Neutral

ISO Catalog Number:

BT50BHC25115M

MAR_PLATFORM_KMT:

BT50

Max RPM:

15000

[CSMS]System Size Machine Side:

BT50

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

MM - Metric

[D1]Adapt/Shank/BoreDiaWKPS In:

0.9843

[D1]Adapt/Shank/BoreDiaWKPS mm:

25.0000

[D21]Body Dia 2 Workpce Sde In:

2.4740

[D21]Body Dia 2 Workpce Sde mm:

62.8500

[D2]Body Dia 1 Workpce Side In:

1.9528

[D2]Body Dia 1 Workpce Side mm:

49.6000

[D5]Body Dia. Machine Side In:

3.9370

[D5]Body Dia. Machine Side mm:

100.0000

[D]Adapter/Shank/Bore Dia Frac:

2 3/4

[D]Adapter/Shank/Bore Dia Inch:

2.7500

[D]Adapter/Shank/Bore Dia mm:

69.8500

[G3]CL_CONN_THD_SIZE_MS_INT:

M24X3

[L1]Gage Length 1 Inch:

4.5276

[L1]Gage Length 1 Metric:

115.0000

[L21]Usable Length 2 Inch:

3.0315

[L21]Usable Length 2 Metric:

77.0000

[L2]Usable Length Inch:

2.0079

[L2]Usable Length Metric:

51.0000

[L4] Flange-Front End Dist In:

3.0315

[L4] Flange-Front End Dist mm:

77.0000

[L9]Clamping Length Inch:

1.8110

[L9]Clamping Length Metric:

46.0000

[LF]Functional Length Inch:

4.5276

[LF]Functional Length Metric:

115.0000

[LPR]Protruding Length Inch:

4.5276

[LPR]Protruding Length Metric:

115.0000

[LS] Shank Length Inch:

4.1260

[LS] Shank Length Metric:

104.8000

[LTA]Tool Assembly Length Inch:

4.5276

[LTA]Tool Assembly Length mm:

115.0000

[L] Overall Length Inch:

8.5354

[L] Overall Length Metric:

216.8000

[V] Adjustment Range Inch:

0.3937

[V] Adjustment Range mm:

10.0000

Manufactured By:

Kennametal
