KMT-1162185 by Kennametal
Call For Price
- Part Number: 1162185
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

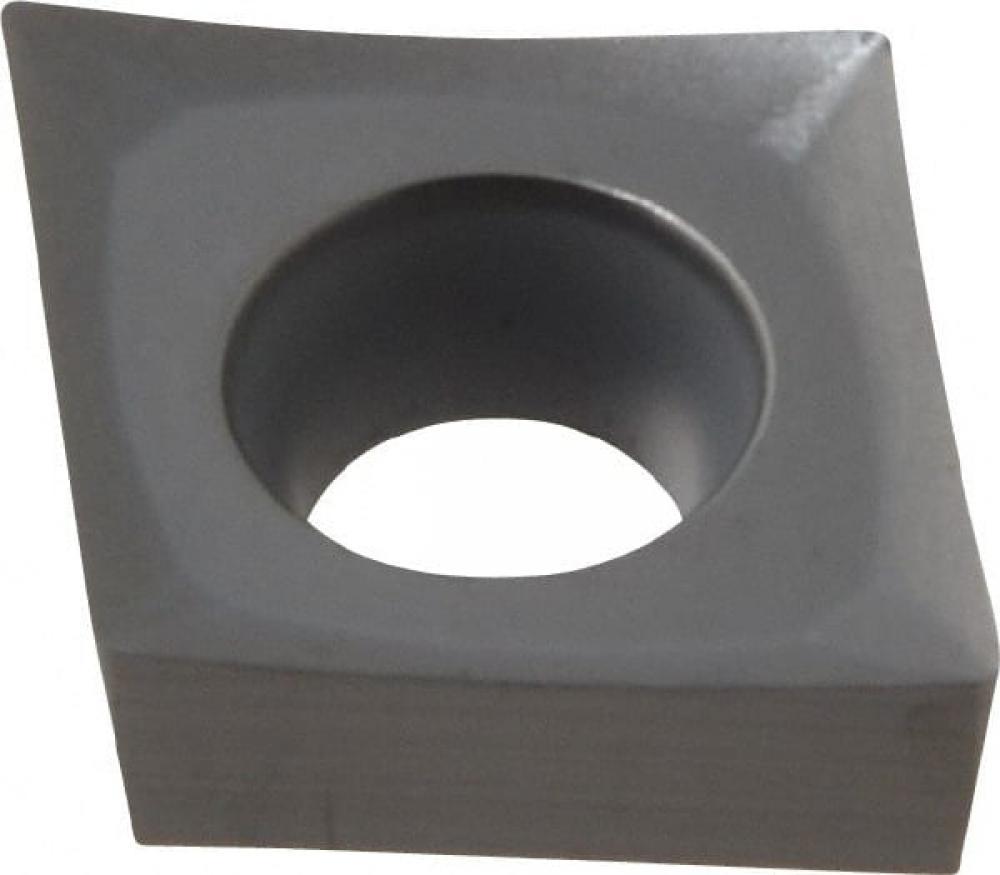

ANSI/ISO Turning Insert CC..
Specifications
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Groove and Turn Indexable Inserts
Corner Radius (Decimal Inch):
0.015625
Corner Radius (Inch):
Jan-64
Corner Radius (mm):
0.4
Grade:
K313
Primary Workpiece Material:
High-Temp Alloys
Chipbreaker Mfgr's Designation:
HP
Cutting Tool Material:
Carbide
Engineering Insert Geometry:
GT_HP
Hand of Tool:
N - Neutral
Insert Mounting:
3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges:
2
Insert Shape - Marcom Calc:
Diamond/Rhombic 80
ISO Catalog Number:
CCGT120404HP
MAR_PLATFORM_KMT:
Screw-On
Secondary Workpiece Material:
Non-Ferrous Materials
Workpiece Material Facets - Secondary:
Non-Ferrous Materials
[ALPHANM] Clearance Ang Minor:
7.000
[ALPHAN] Clearance Angle Major:
7.000
[CUBMS]Unit of Tool:
B - Both Metric & Inch
[CUBWS]Units of Tool (Extract):
B - Both Metric & Inch
[D1] Insert Hole Size Inch:
0.2165
[D1] Insert Hole Size Metric:
5.5000
[D] Insert IC Size Fraction:
1/2
[D] Insert IC Size Inch:
0.5000
[D] Insert IC Size Metric:
12.7000
[L10] Ins Cut Edge Length In:
0.5077
[L10] Ins Cut Edge Length mm:
12.8960
[M] Insert Gage Dimens. Metric:
3.3080
[M] Insert Gage Dimension Inch:
0.1302
[REPSILON] Corner Radius Frac:
1/64
[REPSILON] Corner Radius Inch:
0.015625
[REPSILON] Corner Radius MM:
0.4000
[S] Insert Thickness Fraction:
3/16
[S] Insert Thickness Inch:
0.1875
[S] Insert Thickness Metric:
4.7600
Manufactured By:
Kennametal
