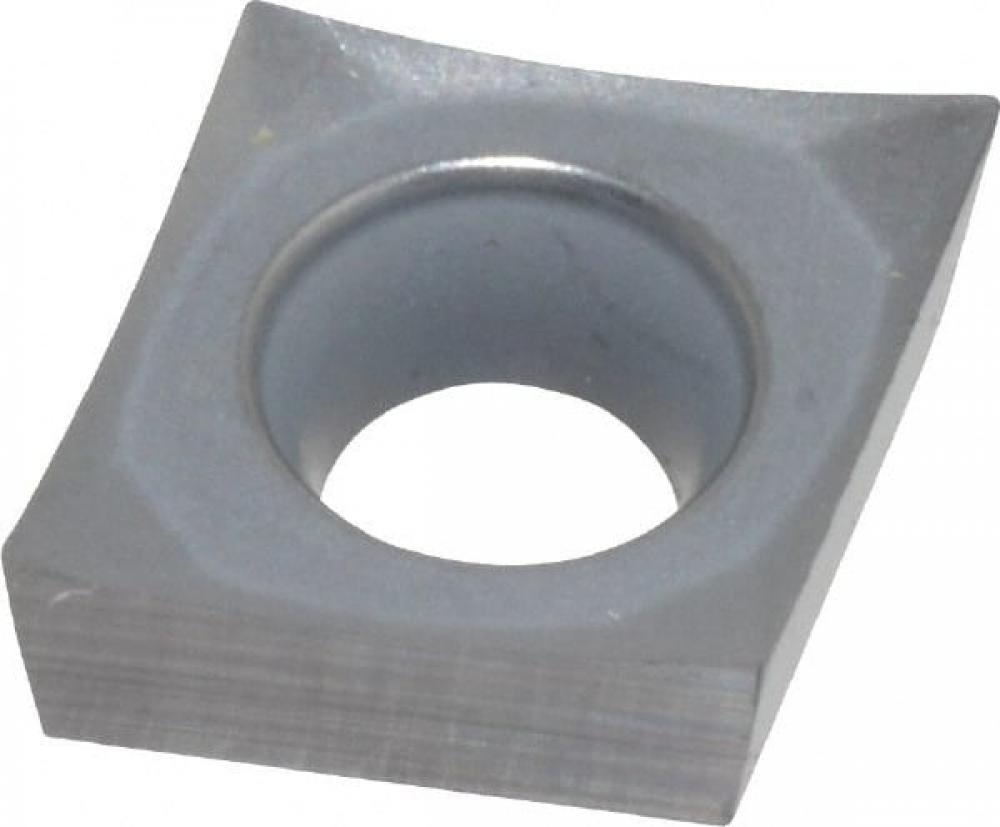

KMT-1162183 by Kennametal
Call For Price
- Part Number: 1162183
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
ANSI/ISO Turning Insert CC..
Specifications
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Groove and Turn Indexable Inserts
Corner Radius (Decimal Inch):
0.008
Corner Radius (Inch):
0.008
Corner Radius (mm):
0.2
Grade:
K313
Primary Workpiece Material:
High-Temp Alloys
Chipbreaker Mfgr's Designation:
HP
Cutting Tool Material:
Carbide
Engineering Insert Geometry:
GT_HP
Hand of Tool:
N - Neutral
Insert Mounting:
3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges:
2
Insert Shape - Marcom Calc:
Diamond/Rhombic 80
ISO Catalog Number:
CCGT09T302HP
MAR_PLATFORM_KMT:
Screw-On
Secondary Workpiece Material:
Non-Ferrous Materials
Workpiece Material Facets - Secondary:
Non-Ferrous Materials
[ALPHANM] Clearance Ang Minor:
7.000
[ALPHAN] Clearance Angle Major:
7.000
[CUBMS]Unit of Tool:
B - Both Metric & Inch
[CUBWS]Units of Tool (Extract):
B - Both Metric & Inch
[D1] Insert Hole Size Inch:
0.1732
[D1] Insert Hole Size Metric:
4.4000
[D] Insert IC Size Fraction:
3/8
[D] Insert IC Size Inch:
0.3750
[D] Insert IC Size Metric:
9.5250
[L10] Ins Cut Edge Length In:
0.3808
[L10] Ins Cut Edge Length mm:
9.6720
[M] Insert Gage Dimens. Metric:
2.5340
[M] Insert Gage Dimension Inch:
0.0998
[REPSILON] Corner Radius Frac:
.008
[REPSILON] Corner Radius Inch:
0.008000
[REPSILON] Corner Radius MM:
0.2000
[S] Insert Thickness Fraction:
5/32
[S] Insert Thickness Inch:
0.1563
[S] Insert Thickness Metric:
3.9700
Manufactured By:
Kennametal
