KMT-1147356

KMT-1147356 by Kennametal

Call For Price

Part Number: 1147356
UPC:
Availability:

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

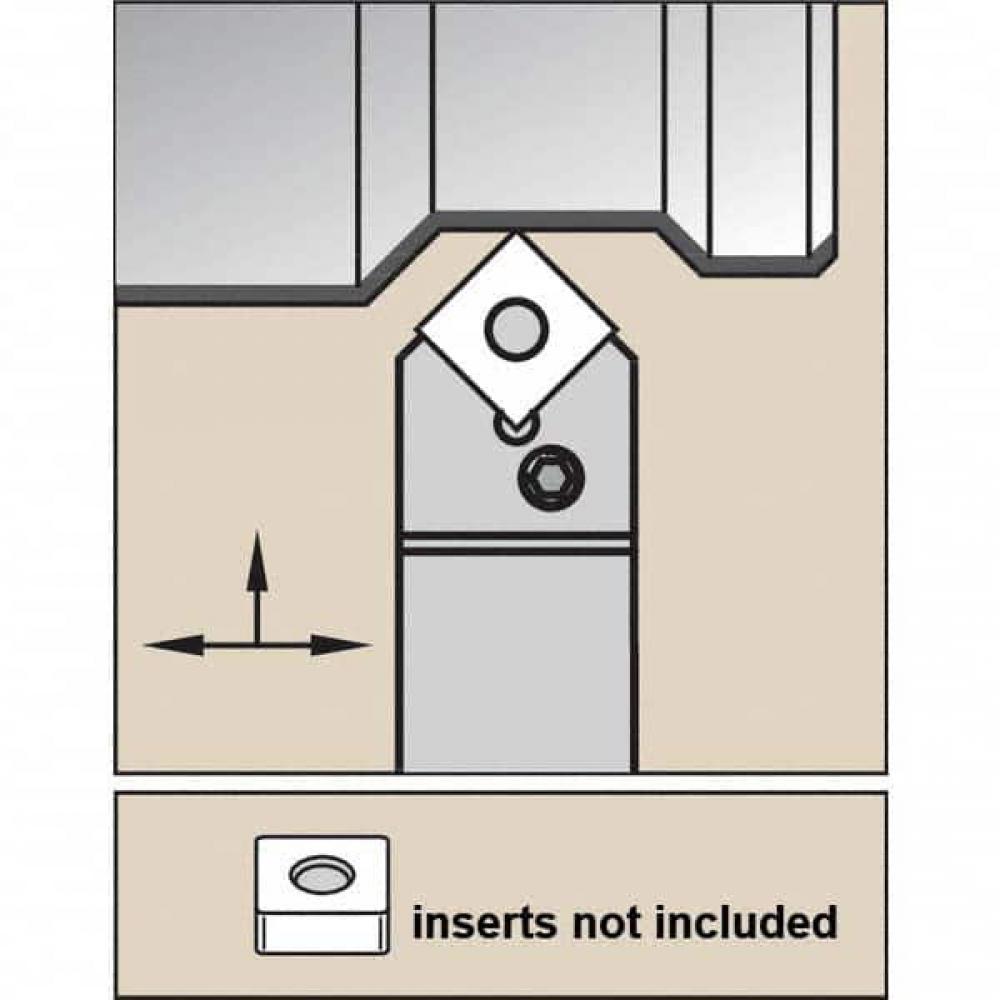

P Clamping Holder W40,0mm L250,0mm

Specifications

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Holders

Hand of Holder:

N - Neutral

Head Length (Inch):

1.97

Head Length (mm):

50

Insert Shape:

S-Square 90

Overall Length (Inch):

9.843

Overall Length (mm):

250

Shank Height (Inch):

1.5748

Shank Height (mm):

40

Shank Length (Inch):

7.87

Shank Length (mm):

200

Shank Width (Decimal Inch):

1.5748

Shank Width (mm):

40

Adapter Style Machine Side:

Toolholder

Adapter Type Machine Side:

Square Shank

Body Material Group:

Steel

Catalog Gage Insert 1:

SN..250724

Clamping Type:

P - Hole Clamping

Coolant Entry Style:

No Coolant

Coolant Exit:

No Coolant

Coolant Supply:

No

Hand of Tool:

N - Neutral

Insert Shape - Marcom Calc:

Square 90

ISO Catalog Number:

PSDNN4040S25

MAR_PLATFORM_KMT:

Kenlever

Number of Insert Seats:

1

[B] Shank Width Inch:

1.5748

[B] Shank Width Metric:

40.0000

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

MM - Metric

[F] F Dimension Fraction:

0.7874

[F] F Dimension Inch:

0.7874

[F] F Dimension Metric:

20.0000

[GAMMAF] Radial Rake Angle:

0.000

[GAMMAP] Axial Rake Angle:

-7.000

[H1] Cutting Height Inch:

1.57480

[H1] Cutting Height Metric:

40.0000

[H] Shank Height Inch:

1.5748

[H] Shank Height Metric:

40.0000

[KRA] Lead Angle ANSI:

45.000

[KRI] Lead Angle ISO:

45.000

[L10] Cutting Edge Length Inch:

1.0000

[L10] Cutting Edge Length mm:

25.4000

[L1] Tool Length Inch:

9.8430

[L1] Tool Length Metric:

250.0000

[L9MS]Clamping LG Mach Side In:

6.2952

[L9MS]Clamping LG Mach Side mm:

160.0000

[LH]Head Length Inch:

1.9700

[LH]Head Length Metric:

50.0000

[LPR]Protruding Length Inch:

9.8430

[LPR]Protruding Length Metric:

250.0000

[LS] Shank Length Inch:

7.8700

[LS] Shank Length Metric:

200.0000

[LTA]Tool Assembly Length Inch:

3.5438

[LTA]Tool Assembly Length mm:

90.0000

[L]Tool Overall Length Inch:

9.8430

[L]Tool Overall Length mm:

250.0000

Manufactured By:

Kennametal
