KMT-1130381

KMT-1130381 by Kennametal

$

186

53

/ 1

Part Number: 1130381
UPC:
Availability:

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

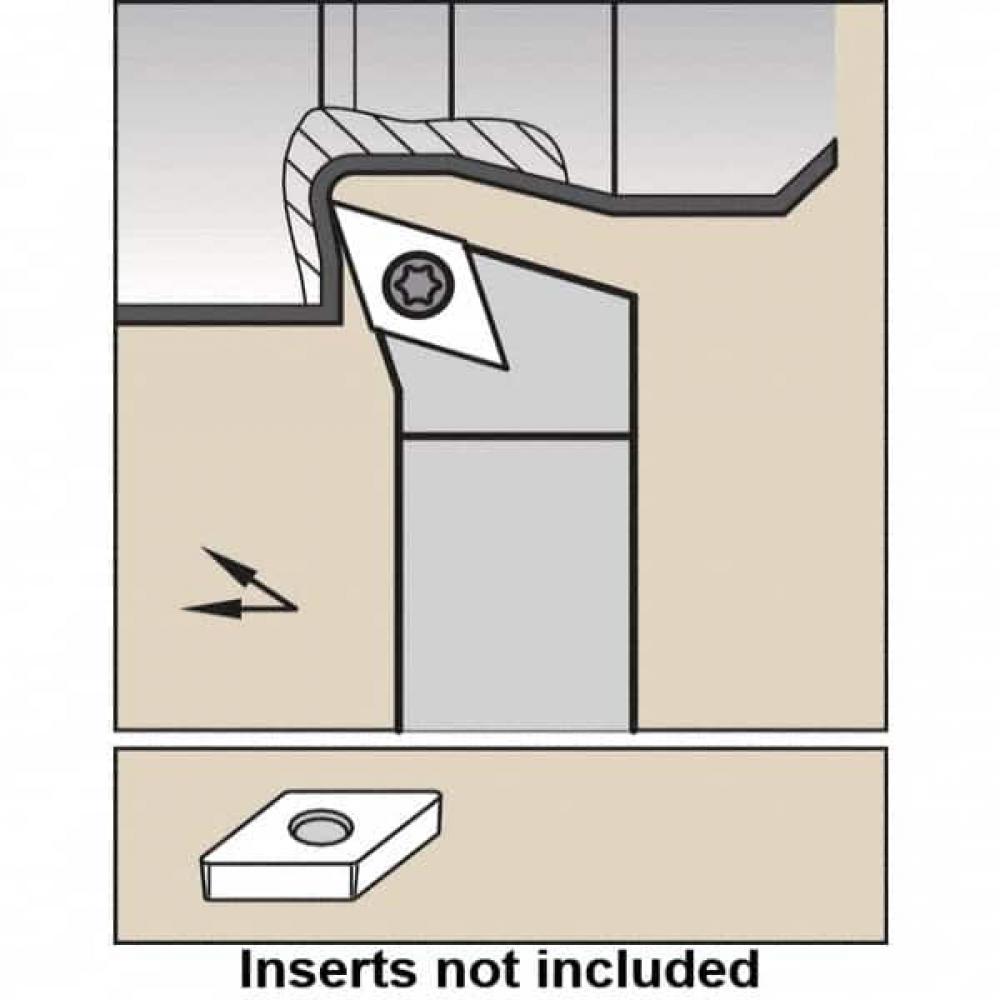

S Clamping Holder W25,0mm L150,0mm

Specifications

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Holders

Hand of Holder:

R - Right

Head Length (Inch):

0.79

Head Length (mm):

20

Insert Shape:

D-Diamond/Rhombic 55

Overall Length (Inch):

5.906

Overall Length (mm):

150

Shank Height (Inch):

0.9843

Shank Height (mm):

25

Shank Length (Inch):

5.17

Shank Length (mm):

131.3

Shank Width (Decimal Inch):

0.9843

Shank Width (Inch):

63/64

Shank Width (mm):

25

Adapter Style Machine Side:

Toolholder

Adapter Type Machine Side:

Square Shank

Body Material Group:

Steel

Catalog Gage Insert 1:

DC..11T308

Clamping Type:

S - Screw Clamping

Coolant Entry Style:

No Coolant

Coolant Exit:

No Coolant

Coolant Supply:

No

Hand of Tool:

R - Right

Insert Shape - Marcom Calc:

Diamond/Rhombic 55

ISO Catalog Number:

SDHCR2525M11

MAR_PLATFORM_KMT:

Screw-On

Number of Insert Seats:

1

[B] Shank Width Fraction:

63/64

[B] Shank Width Inch:

0.9843

[B] Shank Width Metric:

25.0000

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

MM - Metric

[F] F Dimension Fraction:

1.2598

[F] F Dimension Inch:

1.2598

[F] F Dimension Metric:

32.0000

[GAMMAO] Orthogonal Rake Angle:

0.000

[H1] Cutting Height Inch:

0.98425

[H1] Cutting Height Metric:

25.0000

[H] Shank Height Inch:

0.9843

[H] Shank Height Metric:

25.0000

[KRA] Lead Angle ANSI:

-17.500

[KRI] Lead Angle ISO:

107.500

[L10] Cutting Edge Length Inch:

0.4578

[L10] Cutting Edge Length mm:

11.6280

[L1] Tool Length Inch:

5.9060

[L1] Tool Length Metric:

150.0000

[L9MS]Clamping LG Mach Side In:

4.1857

[L9MS]Clamping LG Mach Side mm:

106.3000

[LAMBDAS] Inclination Angle:

0.000

[LH]Head Length Inch:

0.7900

[LH]Head Length Metric:

20.0000

[LPR]Protruding Length Inch:

5.9060

[LPR]Protruding Length Metric:

150.0000

[LS] Shank Length Inch:

5.1700

[LS] Shank Length Metric:

131.3000

[LTA]Tool Assembly Length Inch:

1.7203

[LTA]Tool Assembly Length mm:

43.7000

[L]Tool Overall Length Inch:

5.9060

[L]Tool Overall Length mm:

150.0000

Manufactured By:

Kennametal
