KMT-1104600 by Kennametal
$
185
58
/ 1
- Part Number: 1104600
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

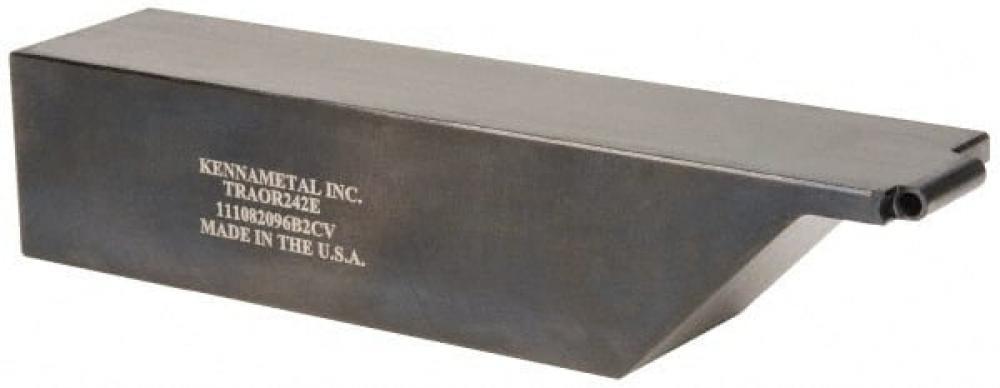

Top Notch Holder W1.50 L7.00
Specifications
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Groove and Turn Indexable Holders
Hand of Holder:
R - Right
Insert Shape:
R-Round
Maximum Depth of Cut:
0.75
Overall Length (Inch):
7
Overall Length (mm):
177.8
Shank Height (Inch):
1.5
Shank Height (mm):
38.1
Shank Width (Decimal Inch):
1.5
Shank Width (Inch):
1 1/2
Shank Width (mm):
38.1
Adapter Style Machine Side:
Toolholder
Adapter Type Machine Side:
Square Shank
Body Material Group:
Steel
Catalog Gage Insert 1:
RC..23
Clamping Type:
T - K-Lock Clamping
Coolant Entry Style:
No Coolant
Coolant Exit:
No Coolant
Coolant Supply:
No
Hand of Tool:
R - Right
Insert Shape - Marcom Calc:
Round
ISO Catalog Number:
TRAOR242E
MAR_PLATFORM_KMT:
K-Lock
Number of Insert Seats:
1
[B] Shank Width Fraction:
1 1/2
[B] Shank Width Inch:
1.5000
[B] Shank Width Metric:
38.1000
[CD]Cutting Depth Inch:
0.7500
[CD]Cutting Depth Metric:
19.0500
[CUBMS]Unit of Tool:
IN - Inch
[CUBWS]Units of Tool (Extract):
IN - Inch
[F] F Dimension Inch:
1.5160
[F] F Dimension Metric:
38.5060
[GAMMAF] Radial Rake Angle:
0.000
[GAMMAO] Orthogonal Rake Angle:
0.000
[GAMMAP] Axial Rake Angle:
0.000
[H1] Cutting Height Inch:
1.50000
[H1] Cutting Height Metric:
38.1000
[H] Shank Height Inch:
1.5000
[H] Shank Height Metric:
38.1000
[KRA] Lead Angle ANSI:
0.000
[KRI] Lead Angle ISO:
90.000
[L1] Tool Length Inch:
7.0000
[L1] Tool Length Metric:
177.8000
[LAMBDAS] Inclination Angle:
0.000
[LPR]Protruding Length Inch:
7.0000
[LPR]Protruding Length Metric:
177.8000
[L]Tool Overall Length Inch:
7.0000
[L]Tool Overall Length mm:
177.8000
Manufactured By:
Kennametal
