KMT-1102722

KMT-1102722 by Kennametal

Call For Price

Part Number: 1102722
UPC:
Availability:

Nothing

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

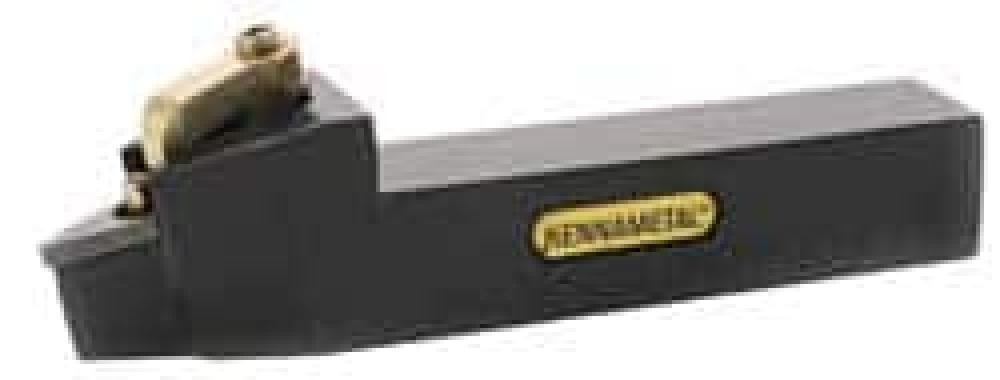

M Clamping Holder W25,0mm L170,0mm

Specifications

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Holders

Hand of Holder:

N - Neutral

Head Length (Decimal Inch):

1.6535

Head Length (Inch):

1.6535

Head Length (mm):

42

Insert Shape:

V-Diamond/Rhombic 35

Overall Length (Inch):

6.6929

Overall Length (mm):

170

Shank Height (Inch):

1.2598

Shank Height (mm):

32

Shank Length (Inch):

5.0886

Shank Length (mm):

129.25

Shank Width (Decimal Inch):

0.9843

Shank Width (Inch):

1.26

Shank Width (mm):

25

Adapter Style Machine Side:

Toolholder

Adapter Type Machine Side:

Square Shank

Body Material Group:

Steel

Catalog Gage Insert 1:

VN..160408

Clamping Type:

M - Top and Hole Clamping

Coolant Entry Style:

No Coolant

Coolant Exit:

No Coolant

Coolant Supply:

No

Hand of Tool:

N - Neutral

Head Height (mm):

42

Insert Shape - Marcom Calc:

Diamond/Rhombic 35

ISO Catalog Number:

MVVNN3225P16

MAR_PLATFORM_KMT:

Kenloc

Number of Insert Seats:

1

[B] Shank Width Fraction:

1.26

[B] Shank Width Inch:

0.9843

[B] Shank Width Metric:

25.0000

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

MM - Metric

[F] F Dimension Fraction:

0.4921

[F] F Dimension Inch:

0.4921

[F] F Dimension Metric:

12.5000

[GAMMAF] Radial Rake Angle:

0.000

[GAMMAP] Axial Rake Angle:

-14.000

[H1] Cutting Height Inch:

1.25980

[H1] Cutting Height Metric:

32.0000

[H2] Head Height Inch:

1.6535

[H2] Head Height Metric:

42.0000

[H] Shank Height Inch:

1.2598

[H] Shank Height Metric:

32.0000

[KRA] Lead Angle ANSI:

17.500

[KRI] Lead Angle ISO:

72.500

[L10] Cutting Edge Length Inch:

0.6538

[L10] Cutting Edge Length mm:

16.6060

[L1] Tool Length Inch:

6.6929

[L1] Tool Length Metric:

170.0000

[L9MS]Clamping LG Mach Side In:

3.8288

[L9MS]Clamping LG Mach Side mm:

97.2500

[LH]Head Length Inch:

1.6535

[LH]Head Length Metric:

42.0000

[LPR]Protruding Length Inch:

6.6929

[LPR]Protruding Length Metric:

170.0000

[LS] Shank Length Inch:

5.0886

[LS] Shank Length Metric:

129.2500

[LTA]Tool Assembly Length Inch:

2.9130

[LTA]Tool Assembly Length mm:

74.0000

[L]Tool Overall Length Inch:

6.6929

[L]Tool Overall Length mm:

170.0000

Manufactured By:

Kennametal
