KMT-1102714

KMT-1102714 by Kennametal

Call For Price

Part Number: 1102714
UPC:
Availability:

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

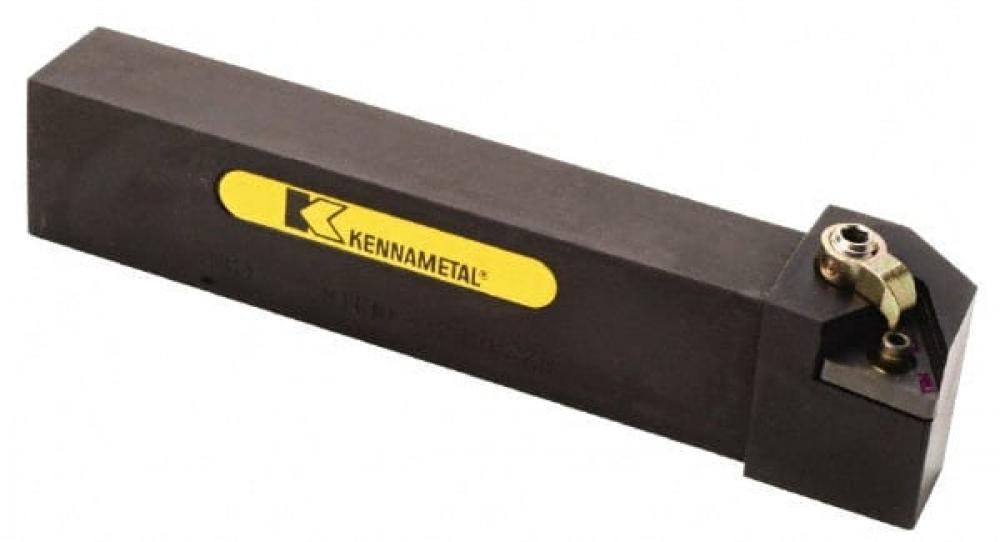

M Clamping Holder W25,0mm L150,0mm

Specifications

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Holders

Hand of Holder:

L - Left

Head Length (Decimal Inch):

0.984

Head Length (Inch):

1.26

Head Length (mm):

32

Insert Shape:

T-Triangle 60

Overall Length (Inch):

5.906

Overall Length (mm):

150

Shank Height (Inch):

0.984

Shank Height (mm):

25

Shank Length (Inch):

4.646

Shank Length (mm):

118

Shank Width (Decimal Inch):

0.984

Shank Width (Inch):

1 1/4

Shank Width (mm):

25

Adapter Style Machine Side:

Toolholder

Adapter Type Machine Side:

Square Shank

Body Material Group:

Steel

Catalog Gage Insert 1:

TN..160408

Clamping Type:

M - Top and Hole Clamping

Coolant Entry Style:

No Coolant

Coolant Exit:

No Coolant

Coolant Supply:

No

Hand of Tool:

L - Left

Head Height (mm):

25

Insert Shape - Marcom Calc:

Triangle 60

ISO Catalog Number:

MTGNL2525M16

MAR_PLATFORM_KMT:

Kenloc

Number of Insert Seats:

1

[B] Shank Width Fraction:

1 1/4

[B] Shank Width Inch:

0.9840

[B] Shank Width Metric:

25.0000

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

MM - Metric

[F] F Dimension Fraction:

1.2598

[F] F Dimension Inch:

1.2600

[F] F Dimension Metric:

32.0000

[GAMMAO] Orthogonal Rake Angle:

-5.000

[H1] Cutting Height Inch:

0.98400

[H1] Cutting Height Metric:

25.0000

[H2] Head Height Inch:

0.9840

[H2] Head Height Metric:

25.0000

[H] Shank Height Inch:

0.9840

[H] Shank Height Metric:

25.0000

[KRA] Lead Angle ANSI:

0.000

[KRI] Lead Angle ISO:

90.000

[L10] Cutting Edge Length Inch:

0.6495

[L10] Cutting Edge Length mm:

16.4980

[L1] Tool Length Inch:

5.9060

[L1] Tool Length Metric:

150.0000

[L9MS]Clamping LG Mach Side In:

3.6620

[L9MS]Clamping LG Mach Side mm:

93.0000

[LAMBDAS] Inclination Angle:

-5.000

[LH]Head Length Inch:

1.2600

[LH]Head Length Metric:

32.0000

[LPR]Protruding Length Inch:

5.9060

[LPR]Protruding Length Metric:

150.0000

[LS] Shank Length Inch:

4.6460

[LS] Shank Length Metric:

118.0000

[LTA]Tool Assembly Length Inch:

2.2440

[LTA]Tool Assembly Length mm:

57.0000

[L]Tool Overall Length Inch:

5.9060

[L]Tool Overall Length mm:

150.0000

Manufactured By:

Kennametal
