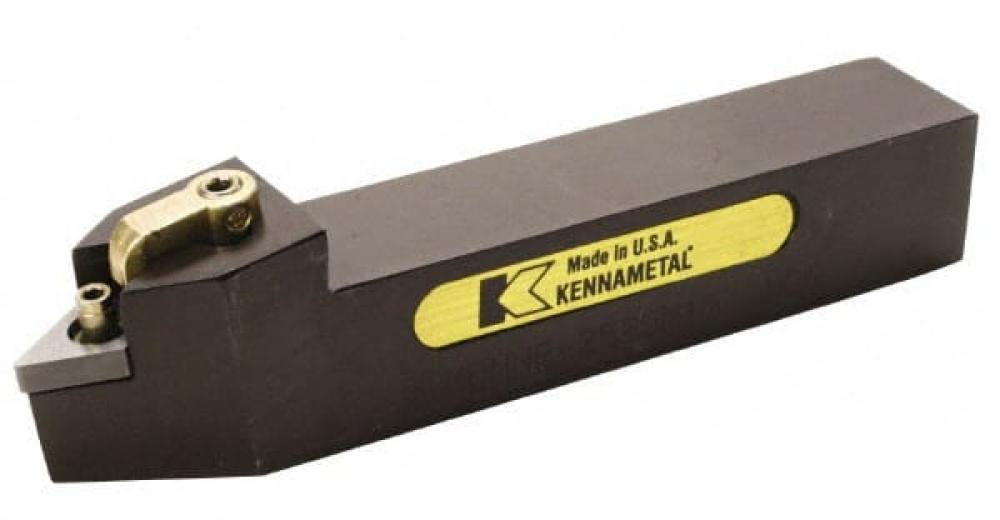

M Clamping Holder W25,0mm L170,0mm

Specifications

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Holders

Hand of Holder:

L - Left

Head Length (Decimal Inch):

1.26

Head Length (Inch):

1.61

Head Length (mm):

41

Insert Shape:

D-Diamond/Rhombic 55

Overall Length (Inch):

6.693

Overall Length (mm):

170

Shank Height (Inch):

1.26

Shank Height (mm):

32

Shank Length (Inch):

5.079

Shank Length (mm):

129

Shank Width (Decimal Inch):

0.984

Shank Width (Inch):

1.26

Shank Width (mm):

25

Adapter Style Machine Side:

Toolholder

Adapter Type Machine Side:

Square Shank

Body Material Group:

Steel

Catalog Gage Insert 1:

DN..150608

Clamping Type:

M - Top and Hole Clamping

Coolant Entry Style:

No Coolant

Coolant Exit:

No Coolant

Coolant Supply:

No

Hand of Tool:

L - Left

Head Height (mm):

32

Insert Shape - Marcom Calc:

Diamond/Rhombic 55

ISO Catalog Number:

MDNNL3225P15

MAR_PLATFORM_KMT:

Kenloc

Number of Insert Seats:

1

[B] Shank Width Fraction:

1.26

[B] Shank Width Inch:

0.9840

[B] Shank Width Metric:

25.0000

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

MM - Metric

[F] F Dimension Inch:

0.4920

[F] F Dimension Metric:

12.5000

[GAMMAF] Radial Rake Angle:

0.000

[GAMMAP] Axial Rake Angle:

-10.000

[H1] Cutting Height Inch:

1.26000

[H1] Cutting Height Metric:

32.0000

[H2] Head Height Inch:

1.2600

[H2] Head Height Metric:

32.0000

[H] Shank Height Inch:

1.2600

[H] Shank Height Metric:

32.0000

[KRA] Lead Angle ANSI:

27.000

[KRI] Lead Angle ISO:

63.000

[L10] Cutting Edge Length Inch:

0.6104

[L10] Cutting Edge Length mm:

15.5040

[L1] Tool Length Inch:

6.6930

[L1] Tool Length Metric:

170.0000

[L9MS]Clamping LG Mach Side In:

3.8230

[L9MS]Clamping LG Mach Side mm:

97.0000

[LH]Head Length Inch:

1.6100

[LH]Head Length Metric:

41.0000

[LPR]Protruding Length Inch:

6.6930

[LPR]Protruding Length Metric:

170.0000

[LS] Shank Length Inch:

5.0790

[LS] Shank Length Metric:

129.0000

[LTA]Tool Assembly Length Inch:

2.8700

[LTA]Tool Assembly Length mm:

73.0000

[L]Tool Overall Length Inch:

6.6930

[L]Tool Overall Length mm:

170.0000

Manufactured By:

Kennametal
