KMT-1102316

KMT-1102316 by Kennametal

$

187

03

/ 1

Part Number: 1102316
UPC:
Availability:

Nothing

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

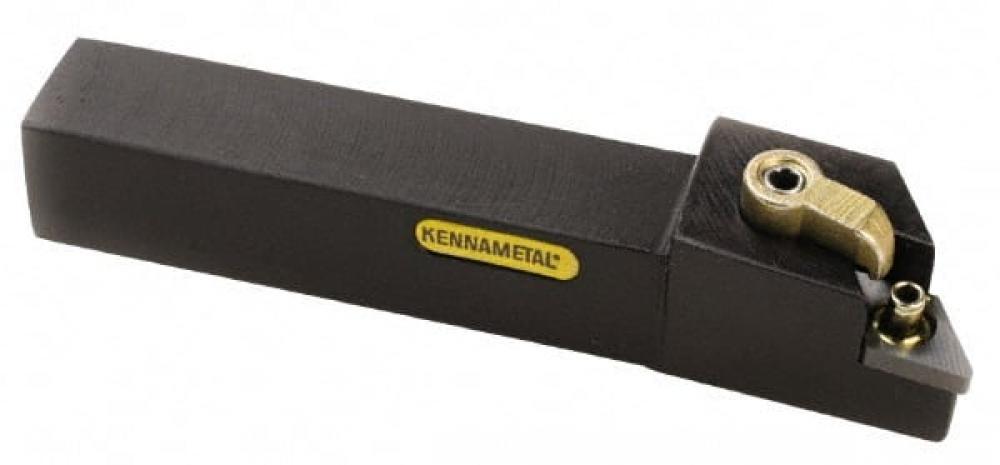

M Clamping Holder W25,0mm L150,0mm

Specifications

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Holders

Hand of Holder:

L - Left

Head Length (Decimal Inch):

1.23

Head Length (Inch):

1.42

Head Length (mm):

36

Insert Shape:

D-Diamond/Rhombic 55

Overall Length (Inch):

5.906

Overall Length (mm):

150

Shank Height (Inch):

0.984

Shank Height (mm):

25

Shank Length (Inch):

4.486

Shank Length (mm):

114

Shank Width (Decimal Inch):

0.984

Shank Width (Inch):

63/64

Shank Width (mm):

25

Adapter Style Machine Side:

Toolholder

Adapter Type Machine Side:

Square Shank

Body Material Group:

Steel

Catalog Gage Insert 1:

DN..150608

Clamping Type:

M - Top and Hole Clamping

Coolant Entry Style:

No Coolant

Coolant Exit:

No Coolant

Coolant Supply:

No

Hand of Tool:

L - Left

Head Height (mm):

31.18

Insert Shape - Marcom Calc:

Diamond/Rhombic 55

ISO Catalog Number:

MDJNL2525M15

MAR_PLATFORM_KMT:

Kenloc

Number of Insert Seats:

1

[B] Shank Width Fraction:

63/64

[B] Shank Width Inch:

0.9840

[B] Shank Width Metric:

25.0000

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

MM - Metric

[F] F Dimension Fraction:

1.2598

[F] F Dimension Inch:

1.2600

[F] F Dimension Metric:

32.0000

[GAMMAO] Orthogonal Rake Angle:

-5.000

[H1] Cutting Height Inch:

0.98400

[H1] Cutting Height Metric:

25.0000

[H2] Head Height Inch:

1.2300

[H2] Head Height Metric:

31.1800

[H] Shank Height Inch:

0.9840

[H] Shank Height Metric:

25.0000

[KRA] Lead Angle ANSI:

-3.000

[KRI] Lead Angle ISO:

93.000

[L10] Cutting Edge Length Inch:

0.6104

[L10] Cutting Edge Length mm:

15.5040

[L1] Tool Length Inch:

5.9060

[L1] Tool Length Metric:

150.0000

[L9MS]Clamping LG Mach Side In:

3.5020

[L9MS]Clamping LG Mach Side mm:

89.0000

[LAMBDAS] Inclination Angle:

-5.000

[LH]Head Length Inch:

1.4200

[LH]Head Length Metric:

36.0000

[LPR]Protruding Length Inch:

5.9060

[LPR]Protruding Length Metric:

150.0000

[LS] Shank Length Inch:

4.4860

[LS] Shank Length Metric:

114.0000

[LTA]Tool Assembly Length Inch:

2.4040

[LTA]Tool Assembly Length mm:

61.0000

[L]Tool Overall Length Inch:

5.9060

[L]Tool Overall Length mm:

150.0000

Manufactured By:

Kennametal
