KMT-1102242

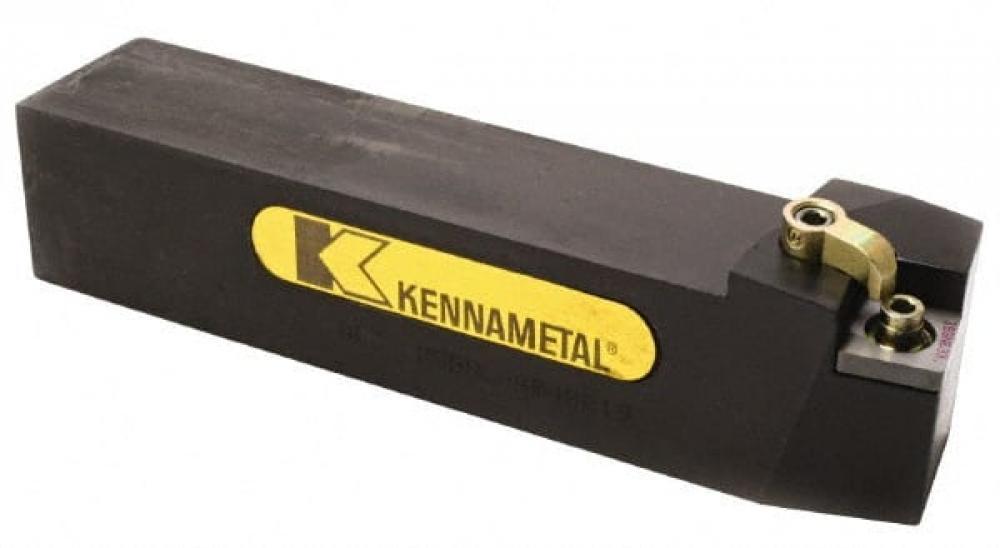

KMT-1102242 by Kennametal

Call For Price

Part Number: 1102242
UPC:
Availability:

Nothing

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

M Clamping Holder W20,0mm L125,0mm

Specifications

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Holders

Hand of Holder:

L - Left

Head Length (Decimal Inch):

1.1

Head Length (Inch):

1.26

Head Length (mm):

32

Insert Shape:

S-Square 90

Overall Length (Inch):

4.921

Overall Length (mm):

125

Shank Height (Inch):

0.787

Shank Height (mm):

20

Shank Length (Inch):

3.661

Shank Length (mm):

93

Shank Width (Decimal Inch):

0.787

Shank Width (Inch):

0.787

Shank Width (mm):

20

Adapter Style Machine Side:

Toolholder

Adapter Type Machine Side:

Square Shank

Body Material Group:

Steel

Catalog Gage Insert 1:

SN..120408

Clamping Type:

M - Top and Hole Clamping

Coolant Entry Style:

No Coolant

Coolant Exit:

No Coolant

Coolant Supply:

No

Hand of Tool:

L - Left

Head Height (mm):

28

Insert Shape - Marcom Calc:

Square 90

ISO Catalog Number:

MSBNL2020K12

MAR_PLATFORM_KMT:

Kenloc

Number of Insert Seats:

1

[B] Shank Width Fraction:

0.787

[B] Shank Width Inch:

0.7870

[B] Shank Width Metric:

20.0000

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

MM - Metric

[FA] F A Dimension Inch:

0.12205

[FA] F A Dimension Metric:

3.100

[F] F Dimension Fraction:

0.6693

[F] F Dimension Inch:

0.6690

[F] F Dimension Metric:

17.0000

[GAMMAO] Orthogonal Rake Angle:

-5.000

[H1] Cutting Height Inch:

0.78700

[H1] Cutting Height Metric:

20.0000

[H2] Head Height Inch:

1.1000

[H2] Head Height Metric:

28.0000

[H] Shank Height Inch:

0.7870

[H] Shank Height Metric:

20.0000

[KRA] Lead Angle ANSI:

15.000

[KRI] Lead Angle ISO:

75.000

[L10] Cutting Edge Length Inch:

0.5000

[L10] Cutting Edge Length mm:

12.7000

[L1] Tool Length Inch:

4.9210

[L1] Tool Length Metric:

125.0000

[L9MS]Clamping LG Mach Side In:

2.8740

[L9MS]Clamping LG Mach Side mm:

73.0000

[LAMBDAS] Inclination Angle:

-5.000

[LH]Head Length Inch:

1.2600

[LH]Head Length Metric:

32.0000

[LPR]Protruding Length Inch:

4.9210

[LPR]Protruding Length Metric:

125.0000

[LS] Shank Length Inch:

3.6610

[LS] Shank Length Metric:

93.0000

[LTA]Tool Assembly Length Inch:

2.0470

[LTA]Tool Assembly Length mm:

52.0000

[L]Tool Overall Length Inch:

4.9210

[L]Tool Overall Length mm:

125.0000

Manufactured By:

Kennametal
