KMT-1102241

KMT-1102241 by Kennametal

Call For Price

Part Number: 1102241
UPC:
Availability:

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

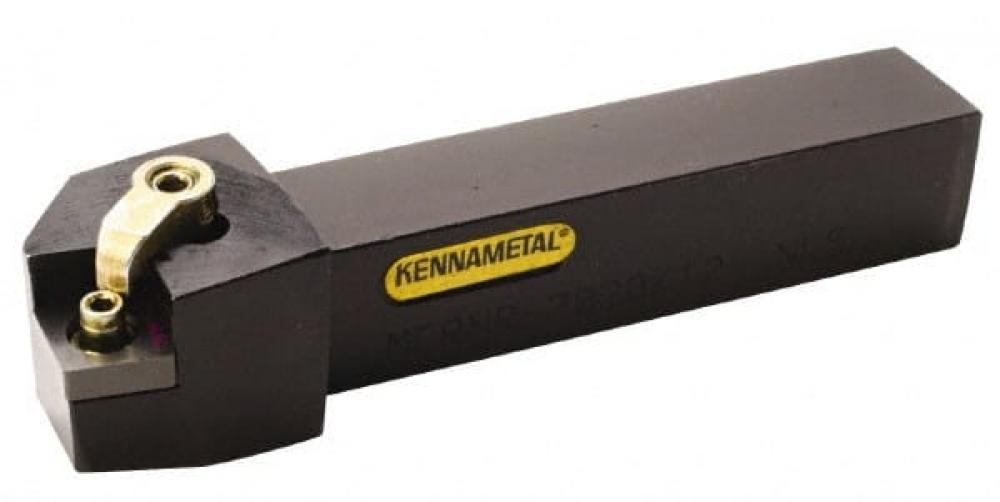

M Clamping Holder W32,0mm L170,0mm

Specifications

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Holders

Hand of Holder:

L - Left

Head Length (Inch):

1.2992

Head Length (mm):

33

Insert Shape:

C-Diamond/Rhombic 80

Overall Length (Inch):

6.6929

Overall Length (mm):

170

Shank Height (Inch):

1.2598

Shank Height (mm):

32

Shank Width (Decimal Inch):

1.2598

Shank Width (mm):

32

Adapter Style Machine Side:

Toolholder

Adapter Type Machine Side:

Square Shank

Body Material Group:

Steel

Catalog Gage Insert 1:

CN..160612

Clamping Type:

M - Top and Hole Clamping

Coolant Entry Style:

No Coolant

Coolant Exit:

No Coolant

Coolant Supply:

No

Hand of Tool:

L - Left

Insert Shape - Marcom Calc:

Diamond/Rhombic 80

ISO Catalog Number:

MCRNL3232P16

MAR_PLATFORM_KMT:

Kenloc

Number of Insert Seats:

1

[B] Shank Width Inch:

1.2598

[B] Shank Width Metric:

32.0000

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

MM - Metric

[FA] F A Dimension Inch:

0.16425

[FA] F A Dimension Metric:

4.1720

[F] F Dimension Fraction:

1.2598

[F] F Dimension Inch:

1.2598

[F] F Dimension Metric:

32.0000

[GAMMAO] Orthogonal Rake Angle:

-5.000

[H1] Cutting Height Inch:

1.25984

[H1] Cutting Height Metric:

32.0000

[H] Shank Height Inch:

1.2598

[H] Shank Height Metric:

32.0000

[KRA] Lead Angle ANSI:

15.000

[KRI] Lead Angle ISO:

75.000

[L10] Cutting Edge Length Inch:

0.6346

[L10] Cutting Edge Length mm:

16.1200

[L1] Tool Length Inch:

6.6929

[L1] Tool Length Metric:

170.0000

[LAMBDAS] Inclination Angle:

-5.000

[LH]Head Length Inch:

1.2992

[LH]Head Length Metric:

33.0000

[LPR]Protruding Length Inch:

6.6929

[LPR]Protruding Length Metric:

170.0000

[L]Tool Overall Length Inch:

6.6929

[L]Tool Overall Length mm:

170.0000

Manufactured By:

Kennametal
