KMT-1102173

KMT-1102173 by Kennametal

Call For Price
  • Part Number: 1102173
  • UPC:
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

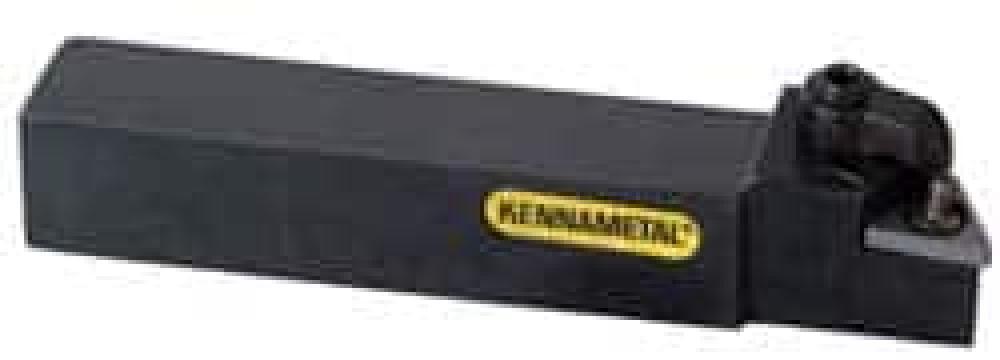

M Clamping Holder W25,0mm L150,0mm
Specifications
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Groove and Turn Indexable Holders
Hand of Holder:
R - Right
Head Length (Decimal Inch):
1.1649
Head Length (Inch):
1.2598
Head Length (mm):
30
Insert Shape:
T-Triangle 60
Overall Length (Inch):
5.9055
Overall Length (mm):
150
Shank Height (Inch):
0.9843
Shank Height (mm):
25
Shank Length (Inch):
4.6949
Shank Length (mm):
119.25
Shank Width (Decimal Inch):
0.9843
Shank Width (Inch):
1
Shank Width (mm):
25
Adapter Style Machine Side:
Toolholder
Adapter Type Machine Side:
Square Shank
Body Material Group:
Steel
Catalog Gage Insert 1:
TN..160408
Clamping Type:
M - Top and Hole Clamping
Coolant Entry Style:
No Coolant
Coolant Exit:
No Coolant
Coolant Supply:
No
Hand of Tool:
R - Right
Head Height (mm):
29.587
Insert Shape - Marcom Calc:
Triangle 60
ISO Catalog Number:
MTANRS2525M16
MAR_PLATFORM_KMT:
Kenloc
Number of Insert Seats:
1
[B] Shank Width Fraction:
1
[B] Shank Width Inch:
0.9843
[B] Shank Width Metric:
25.0000
[CUBMS]Unit of Tool:
MM - Metric
[CUBWS]Units of Tool (Extract):
MM - Metric
[F] F Dimension Fraction:
1.0039
[F] F Dimension Inch:
1.0039
[F] F Dimension Metric:
25.5000
[GAMMAO] Orthogonal Rake Angle:
-5.000
[H1] Cutting Height Inch:
0.98430
[H1] Cutting Height Metric:
25.0000
[H2] Head Height Inch:
1.1649
[H2] Head Height Metric:
29.5870
[H] Shank Height Inch:
0.9843
[H] Shank Height Metric:
25.0000
[KRA] Lead Angle ANSI:
0.000
[KRI] Lead Angle ISO:
90.000
[L10] Cutting Edge Length Inch:
0.6495
[L10] Cutting Edge Length mm:
16.4980
[L1] Tool Length Inch:
5.9055
[L1] Tool Length Metric:
150.0000
[L9MS]Clamping LG Mach Side In:
3.7106
[L9MS]Clamping LG Mach Side mm:
94.2500
[LAMBDAS] Inclination Angle:
-5.000
[LH]Head Length Inch:
1.2598
[LH]Head Length Metric:
30.0000
[LPR]Protruding Length Inch:
5.9055
[LPR]Protruding Length Metric:
150.0000
[LS] Shank Length Inch:
4.6949
[LS] Shank Length Metric:
119.2500
[LTA]Tool Assembly Length Inch:
2.2441
[LTA]Tool Assembly Length mm:
57.0000
[L]Tool Overall Length Inch:
5.9055
[L]Tool Overall Length mm:
150.0000
Manufactured By:
Kennametal
