KMT-1101638

KMT-1101638 by Kennametal

Call For Price

Part Number: 1101638
UPC:
Availability:

Nothing

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

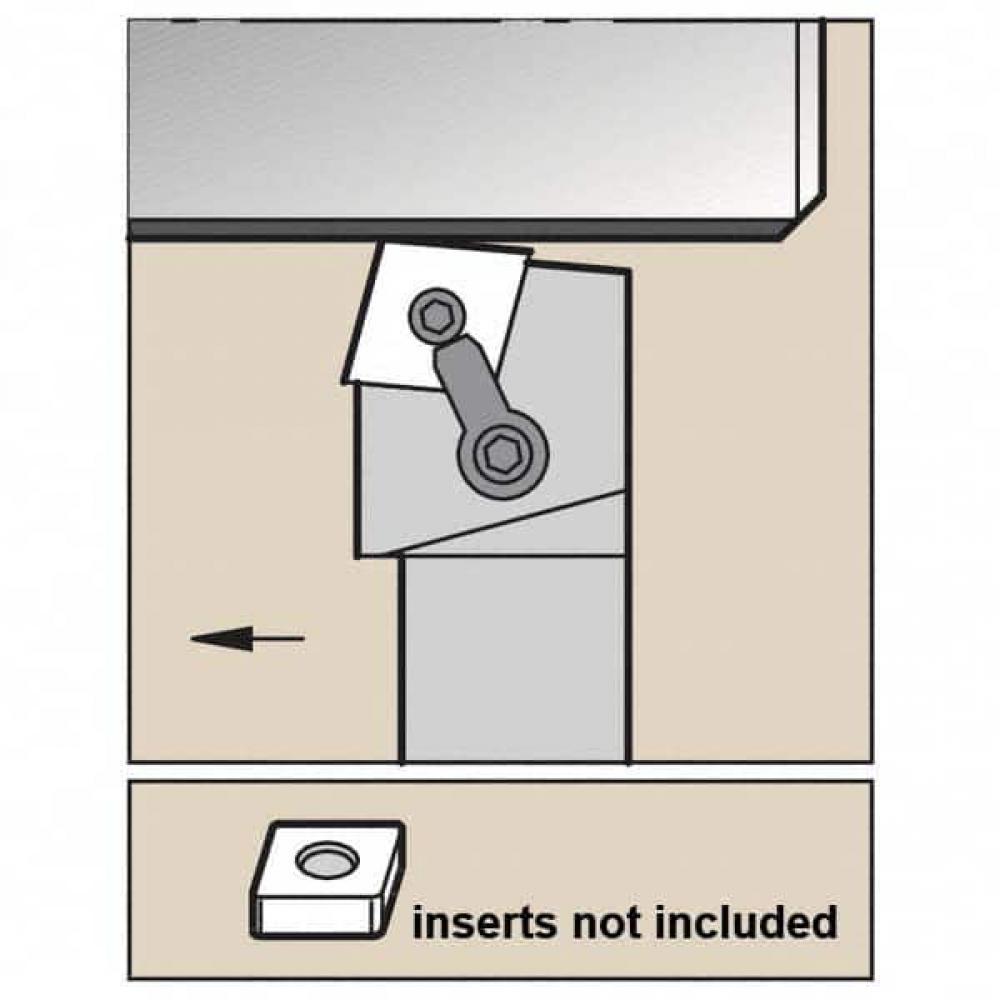

M Clamping Holder W20,0mm L125,0mm

Specifications

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Holders

Hand of Holder:

R - Right

Head Length (Decimal Inch):

1.0309

Head Length (Inch):

1.2598

Head Length (mm):

32

Insert Shape:

C-Diamond/Rhombic 80

Overall Length (Inch):

4.9213

Overall Length (mm):

125

Shank Height (Inch):

0.7874

Shank Height (mm):

20

Shank Length (Inch):

3.7106

Shank Length (mm):

94.25

Shank Width (Decimal Inch):

0.7874

Shank Width (mm):

20

Adapter Style Machine Side:

Toolholder

Adapter Type Machine Side:

Square Shank

Body Material Group:

Steel

Catalog Gage Insert 1:

CN..120408

Clamping Type:

M - Top and Hole Clamping

Coolant Entry Style:

No Coolant

Coolant Exit:

No Coolant

Coolant Supply:

No

Hand of Tool:

R - Right

Head Height (mm):

26.185

Insert Shape - Marcom Calc:

Diamond/Rhombic 80

ISO Catalog Number:

MCRNR2020K12

MAR_PLATFORM_KMT:

Kenloc

Number of Insert Seats:

1

[B] Shank Width Inch:

0.7874

[B] Shank Width Metric:

20.0000

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

MM - Metric

[FA] F A Dimension Inch:

0.13142

[FA] F A Dimension Metric:

3.3380

[F] F Dimension Fraction:

63/64

[F] F Dimension Inch:

0.9843

[F] F Dimension Metric:

25.0000

[GAMMAO] Orthogonal Rake Angle:

-5.000

[H1] Cutting Height Inch:

0.78740

[H1] Cutting Height Metric:

20.0000

[H2] Head Height Inch:

1.0309

[H2] Head Height Metric:

26.1850

[H] Shank Height Inch:

0.7874

[H] Shank Height Metric:

20.0000

[KRA] Lead Angle ANSI:

15.000

[KRI] Lead Angle ISO:

75.000

[L10] Cutting Edge Length Inch:

0.5077

[L10] Cutting Edge Length mm:

12.8960

[L1S] Secondary Tool Length In:

4.9213

[L1S] Secondary Tool Length mm:

125.0000

[L1] Tool Length Inch:

4.9213

[L1] Tool Length Metric:

125.0000

[L9MS]Clamping LG Mach Side In:

2.9232

[L9MS]Clamping LG Mach Side mm:

74.2500

[LAMBDAS] Inclination Angle:

-5.000

[LH]Head Length Inch:

1.2598

[LH]Head Length Metric:

32.0000

[LPR]Protruding Length Inch:

4.9213

[LPR]Protruding Length Metric:

125.0000

[LS] Shank Length Inch:

3.7106

[LS] Shank Length Metric:

94.2500

[LTA]Tool Assembly Length Inch:

2.0473

[LTA]Tool Assembly Length mm:

52.0000

[L]Tool Overall Length Inch:

4.9213

[L]Tool Overall Length mm:

125.0000

Manufactured By:

Kennametal
