KMT-1094543 by Kennametal
$
110
03
/ 1
- Part Number: 1094543
- UPC:
- Availability: Nothing
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

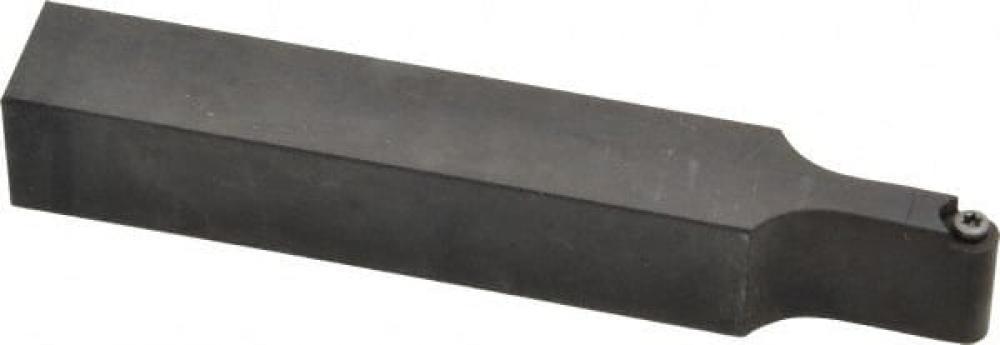

S Clamping Holder W0.63 L4.00
Specifications
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Groove and Turn Indexable Holders
Hand of Holder:
N - Neutral
Insert Shape:
R-Round
Maximum Depth of Cut:
0.62
Overall Length (Inch):
4
Overall Length (mm):
101.6
Shank Height (Inch):
0.625
Shank Height (mm):
15.88
Shank Width (Decimal Inch):
0.625
Shank Width (Inch):
8-May
Shank Width (mm):
15.88
Adapter Style Machine Side:
Toolholder
Adapter Type Machine Side:
Square Shank
Body Material Group:
Steel
Catalog Gage Insert 1:
RC..215
Clamping Type:
S - Screw Clamping
Coolant Entry Style:
No Coolant
Coolant Exit:
No Coolant
Coolant Supply:
No
Hand of Tool:
N - Neutral
Insert Shape - Marcom Calc:
Round
ISO Catalog Number:
SROCN102
MAR_PLATFORM_KMT:
Screw-On
Number of Insert Seats:
1
[B] Shank Width Fraction:
5/8
[B] Shank Width Inch:
0.6250
[B] Shank Width Metric:
15.8800
[CD]Cutting Depth Inch:
0.6200
[CD]Cutting Depth Metric:
15.8800
[CUBMS]Unit of Tool:
IN - Inch
[CUBWS]Units of Tool (Extract):
IN - Inch
[F] F Dimension Fraction:
0.4380
[F] F Dimension Inch:
0.4375
[F] F Dimension Metric:
11.1200
[GAMMAF] Radial Rake Angle:
0.000
[GAMMAP] Axial Rake Angle:
0.000
[H1] Cutting Height Inch:
0.62500
[H1] Cutting Height Metric:
15.8800
[H] Shank Height Inch:
0.6250
[H] Shank Height Metric:
15.8800
[KRA] Lead Angle ANSI:
0.000
[KRI] Lead Angle ISO:
90.000
[L1] Tool Length Inch:
4.0000
[L1] Tool Length Metric:
101.6000
[LPR]Protruding Length Inch:
4.0000
[LPR]Protruding Length Metric:
101.6000
[L]Tool Overall Length Inch:
4.0000
[L]Tool Overall Length mm:
101.6000
Manufactured By:
Kennametal
