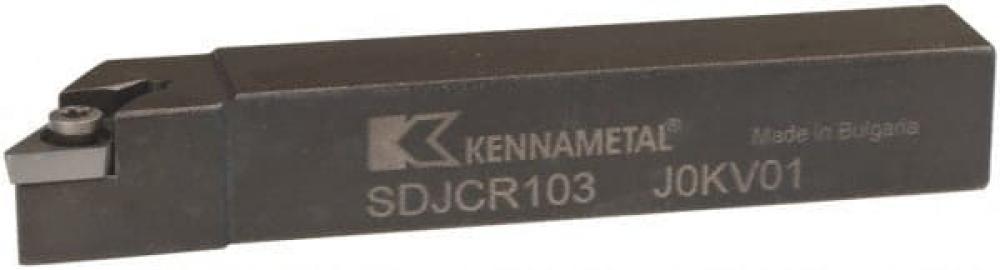

KMT-1094527 by Kennametal
$
174
63
/ 1
- Part Number: 1094527
- UPC:
- Availability: undefined
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
S Clamping Holder W0.63 L4.00
Specifications
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Groove and Turn Indexable Holders
Hand of Holder:
R - Right
Head Length (Inch):
0.88
Head Length (mm):
22.4
Insert Shape:
D-Diamond/Rhombic 55
Overall Length (Inch):
4
Overall Length (mm):
101.6
Shank Height (Inch):
0.625
Shank Height (mm):
15.88
Shank Length (Inch):
3.12
Shank Length (mm):
79.25
Shank Width (Decimal Inch):
0.625
Shank Width (Inch):
8-May
Shank Width (mm):
15.88
Adapter Style Machine Side:
Toolholder
Adapter Type Machine Side:
Square Shank
Body Material Group:
Steel
Catalog Gage Insert 1:
DC..3252
Clamping Type:
S - Screw Clamping
Coolant Entry Style:
No Coolant
Coolant Exit:
No Coolant
Coolant Supply:
No
Hand of Tool:
R - Right
Insert Shape - Marcom Calc:
Diamond/Rhombic 55
ISO Catalog Number:
SDJCR103
MAR_PLATFORM_KMT:
Screw-On
Number of Insert Seats:
1
[B] Shank Width Fraction:
5/8
[B] Shank Width Inch:
0.6250
[B] Shank Width Metric:
15.8800
[CUBMS]Unit of Tool:
IN - Inch
[CUBWS]Units of Tool (Extract):
IN - Inch
[F] F Dimension Fraction:
3/4
[F] F Dimension Inch:
0.7500
[F] F Dimension Metric:
19.0500
[GAMMAO] Orthogonal Rake Angle:
0.000
[H1] Cutting Height Inch:
0.62500
[H1] Cutting Height Metric:
15.8800
[H] Shank Height Inch:
0.6250
[H] Shank Height Metric:
15.8800
[KRA] Lead Angle ANSI:
-3.000
[KRI] Lead Angle ISO:
93.000
[L10] Cutting Edge Length Inch:
0.4578
[L10] Cutting Edge Length mm:
11.6280
[L1] Tool Length Inch:
4.0000
[L1] Tool Length Metric:
101.6000
[L9MS]Clamping LG Mach Side In:
2.4950
[L9MS]Clamping LG Mach Side mm:
63.3700
[LAMBDAS] Inclination Angle:
0.000
[LH]Head Length Inch:
0.8800
[LH]Head Length Metric:
22.4000
[LPR]Protruding Length Inch:
4.0000
[LPR]Protruding Length Metric:
101.6000
[LS] Shank Length Inch:
3.1200
[LS] Shank Length Metric:
79.2500
[LTA]Tool Assembly Length Inch:
1.5050
[LTA]Tool Assembly Length mm:
38.2300
[L]Tool Overall Length Inch:
4.0000
[L]Tool Overall Length mm:
101.6000
Manufactured By:
Kennametal
