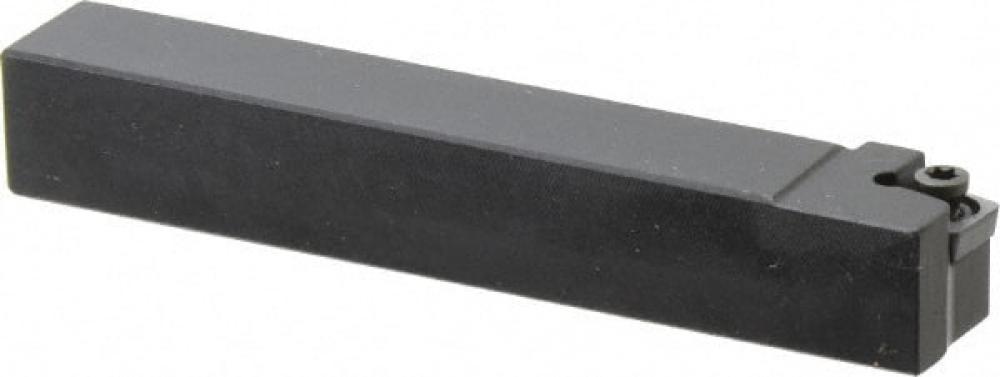

S Clamping Holder W0.63 L4.00

Specifications

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Holders

Hand of Holder:

R - Right

Head Length (Inch):

0.62

Head Length (mm):

15.9

Insert Shape:

C-Diamond/Rhombic 80

Overall Length (Inch):

4

Overall Length (mm):

101.6

Shank Height (Inch):

0.625

Shank Height (mm):

15.88

Shank Length (Inch):

3.375

Shank Length (mm):

85.72

Shank Width (Decimal Inch):

0.625

Shank Width (Inch):

8-May

Shank Width (mm):

15.88

Adapter Style Machine Side:

Toolholder

Adapter Type Machine Side:

Square Shank

Body Material Group:

Steel

Catalog Gage Insert 1:

CC..3252

Clamping Type:

S - Screw Clamping

Coolant Entry Style:

No Coolant

Coolant Exit:

No Coolant

Coolant Supply:

No

Hand of Tool:

R - Right

Insert Shape - Marcom Calc:

Diamond/Rhombic 80

ISO Catalog Number:

SCRCR103

MAR_PLATFORM_KMT:

Screw-On

Number of Insert Seats:

1

[B] Shank Width Fraction:

5/8

[B] Shank Width Inch:

0.6250

[B] Shank Width Metric:

15.8800

[CUBMS]Unit of Tool:

IN - Inch

[CUBWS]Units of Tool (Extract):

IN - Inch

[FA] F A Dimension Inch:

0.08900

[FA] F A Dimension Metric:

2.2700

[FS]Secondary F Dimension Inch:

0.7620

[FS]Secondary F Dimension mm:

21.3600

[F] F Dimension Fraction:

0.6730

[F] F Dimension Inch:

0.6730

[F] F Dimension Metric:

19.0900

[GAMMAO] Orthogonal Rake Angle:

0.000

[H1] Cutting Height Inch:

0.62500

[H1] Cutting Height Metric:

15.8800

[H] Shank Height Inch:

0.6250

[H] Shank Height Metric:

15.8800

[KRA] Lead Angle ANSI:

15.000

[KRI] Lead Angle ISO:

75.000

[L10] Cutting Edge Length Inch:

0.3808

[L10] Cutting Edge Length mm:

9.6720

[L1] Tool Length Inch:

4.0000

[L1] Tool Length Metric:

101.6000

[L9MS]Clamping LG Mach Side In:

2.7500

[L9MS]Clamping LG Mach Side mm:

69.8400

[LAMBDAS] Inclination Angle:

0.000

[LH]Head Length Inch:

0.6200

[LH]Head Length Metric:

15.9000

[LPR]Protruding Length Inch:

4.0000

[LPR]Protruding Length Metric:

101.6000

[LS] Shank Length Inch:

3.3750

[LS] Shank Length Metric:

85.7200

[LTA]Tool Assembly Length Inch:

1.2500

[LTA]Tool Assembly Length mm:

31.7600

[L]Tool Overall Length Inch:

4.0000

[L]Tool Overall Length mm:

101.6000

Manufactured By:

Kennametal
