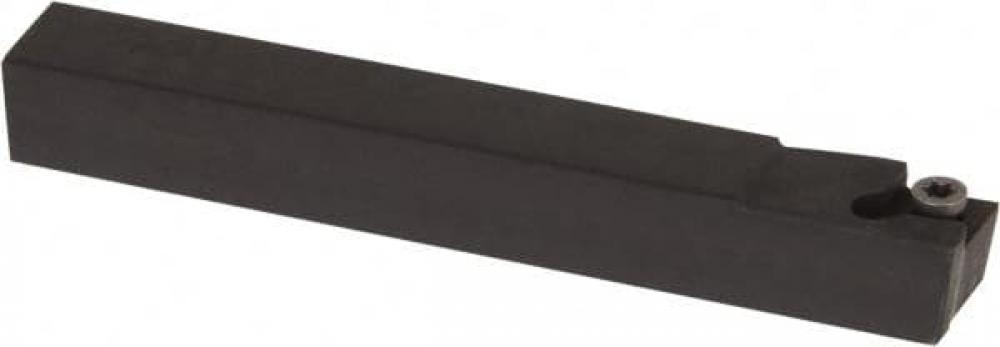

KMT-1094475 by Kennametal
$
85
38
/ 1
- Part Number: 1094475
- UPC:
- Availability: undefined
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
S Clamping Holder W0.31 L2.50
Specifications
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Groove and Turn Indexable Holders
Hand of Holder:
R - Right
Head Length (Inch):
0.5
Head Length (mm):
12.7
Insert Shape:
C-Diamond/Rhombic 80
Overall Length (Inch):
2.5
Overall Length (mm):
63.5
Shank Height (Inch):
0.3125
Shank Height (mm):
7.938
Shank Length (Inch):
2
Shank Length (mm):
50.8
Shank Width (Decimal Inch):
0.3125
Shank Width (Inch):
16-May
Shank Width (mm):
7.938
Adapter Style Machine Side:
Toolholder
Adapter Type Machine Side:
Square Shank
Body Material Group:
Steel
Catalog Gage Insert 1:
CC..2151
Clamping Type:
S - Screw Clamping
Coolant Entry Style:
No Coolant
Coolant Exit:
No Coolant
Coolant Supply:
No
Hand of Tool:
R - Right
Insert Shape - Marcom Calc:
Diamond/Rhombic 80
ISO Catalog Number:
SCLCR052
MAR_PLATFORM_KMT:
Screw-On
Number of Insert Seats:
1
[B] Shank Width Fraction:
5/16
[B] Shank Width Inch:
0.3125
[B] Shank Width Metric:
7.9380
[CUBMS]Unit of Tool:
IN - Inch
[CUBWS]Units of Tool (Extract):
IN - Inch
[F] F Dimension Fraction:
3/8
[F] F Dimension Inch:
0.3750
[F] F Dimension Metric:
9.5200
[GAMMAO] Orthogonal Rake Angle:
0.000
[H1] Cutting Height Inch:
0.31250
[H1] Cutting Height Metric:
7.9380
[H] Shank Height Inch:
0.3125
[H] Shank Height Metric:
7.9380
[KRA] Lead Angle ANSI:
-5.000
[KRI] Lead Angle ISO:
95.000
[L10] Cutting Edge Length Inch:
0.2539
[L10] Cutting Edge Length mm:
6.4490
[L1] Tool Length Inch:
2.5000
[L1] Tool Length Metric:
63.5000
[L9MS]Clamping LG Mach Side In:
1.6875
[L9MS]Clamping LG Mach Side mm:
42.8620
[LAMBDAS] Inclination Angle:
0.000
[LH]Head Length Inch:
0.5000
[LH]Head Length Metric:
12.7000
[LPR]Protruding Length Inch:
2.5000
[LPR]Protruding Length Metric:
63.5000
[LS] Shank Length Inch:
2.0000
[LS] Shank Length Metric:
50.8000
[LTA]Tool Assembly Length Inch:
0.8125
[LTA]Tool Assembly Length mm:
20.6380
[L]Tool Overall Length Inch:
2.5000
[L]Tool Overall Length mm:
63.5000
Manufactured By:
Kennametal
