KMT-1021524 by Kennametal
Call For Price
- Part Number: 1021524
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

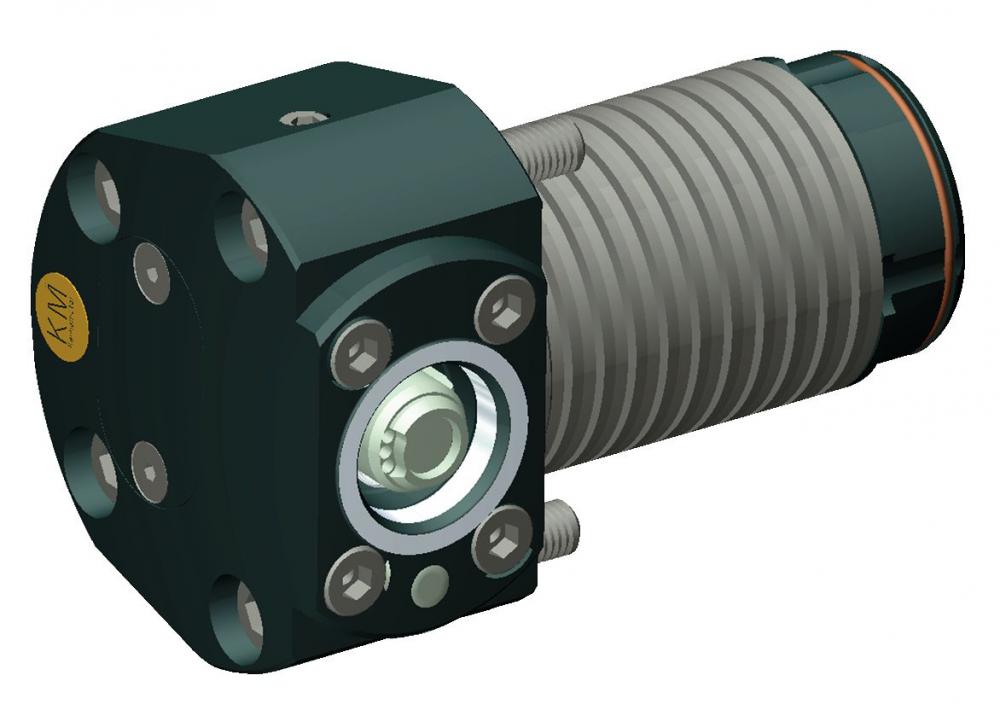

KM63 RACA RIGHT-ANGLE CLAMPING UNIT
Specifications
Details
Category:
Power Tools
Subcategory:
Finishing Tools
Subtype:
CNC Lathe Machine and Accessories
Adapter Style Machine Side:
NACA & RACA
Adapter Style Machine Side-Marcom Calc:
NACA & RACA
Adapter Type Machine Side:
KMTL Flange Adapter
Adapter Type Workpiece Side:
KMT - KM Adapter
Coolant Entry Style:
Flange Coolant Entry
Coolant Exit:
Off-center Axial Coolant
Coolant Supply:
Yes
Front End Tool Type:
KM Modular Adapter
Hand of Tool:
N - Neutral
ISO Catalog Number:
KM63RACADS60DT
MAR_PLATFORM_KMT:
KM63
[A]Coolant Hole Dia Inch:
0.3740
[A]Coolant Hole Diameter Metric:
9.5000
[B] Shank Width Fraction:
5.1181
[B] Shank Width Inch:
5.1181
[B] Shank Width Metric:
130.0000
[CSWS]System SizeWorkpieceSide:
KM63
[CUBMS]Unit of Tool:
MM - Metric
[CUBWS]Units of Tool (Extract):
MM - Metric
[D10] Actuation Cyl Dia In:
2.9528
[D10] Actuation Cyl Dia mm:
75.0000
[D1]Adapt/Shank/BoreDiaWKPS In:
2.4803
[D1]Adapt/Shank/BoreDiaWKPS mm:
63.0000
[D2]Body Dia 1 Workpce Side In:
5.5118
[D2]Body Dia 1 Workpce Side mm:
140.0000
[D]Adapter/Shank/Bore Dia Frac:
3.3465
[D]Adapter/Shank/Bore Dia Inch:
3.3465
[D]Adapter/Shank/Bore Dia mm:
85.0000
[F] F Dimension Inch:
2.3622
[F] F Dimension Metric:
60.0000
[H2] Overall Height Inch:
5.5120
[H2] Overall Height Metric:
140.0000
[L1S] Secondary Tool Length In:
3.1496
[L1S] Secondary Tool Length mm:
80.0000
[L1]Gage Length 1 Inch:
1.6535
[L1]Gage Length 1 Metric:
42.0000
[LF]Functional Length Inch:
1.6535
[LF]Functional Length Metric:
42.0000
[LMAD] Actuate Travel Len In:
0.5512
[LMAD] Actuate Travel Len mm:
14.0000
[LPR]Protruding Length Inch:
3.1496
[LPR]Protruding Length Metric:
80.0000
[LS] Shank Length Inch:
5.9055
[LS] Shank Length Metric:
150.0000
[LTA]Tool Assembly Length Inch:
1.6535
[LTA]Tool Assembly Length mm:
42.0000
[L] Overall Length Inch:
9.0551
[L] Overall Length Metric:
230.0000
Manufactured By:
Kennametal
